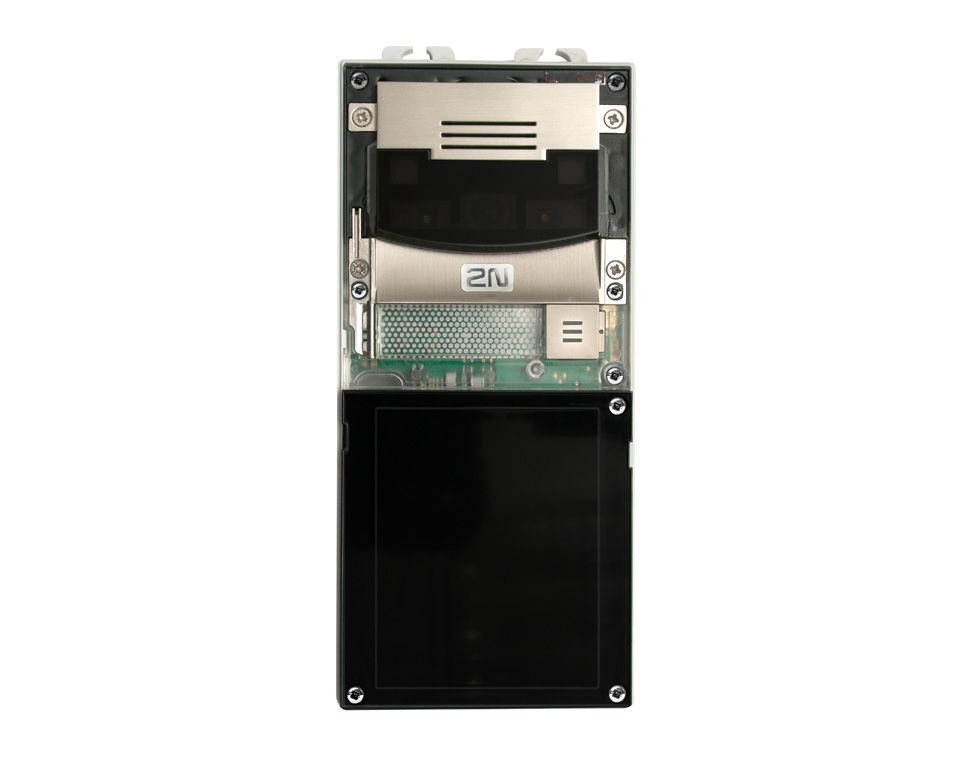

2N Telecommunications 9155101CD 2N Helios IP Verso - Basic module with HD camera content_copy

The 2N® IP Verso is a modular security intercom system designed for outdoor use, developed by 2N Telecommunications. It serves as access control for buildings and enables secure communication between visitors and recipients inside. The device is designed for outdoor use and features an integrated camera as well as audio functions to enable visual and acoustic identification of individuals. The modularity of the system allows for individual adaptation to specific requirements, such as integrating various modules like a touch display, fingerprint reader, or Bluetooth and RFID readers.

Applications

The 2N® IP Verso is suitable for use in residential and commercial buildings, office buildings, and facilities requiring controlled access control. Due to its IP-based architecture, it can be integrated into existing network infrastructures and supports communication over IP networks. Outdoor mounting is ensured by IP67 certification and IK10 certification for mechanical stress, enabling robust use under various weather conditions.

Functions and Equipment in Detail

The device features an integrated camera with a focal length of 120°, ensuring wide field-of-view coverage. The resolution is 1280x960 pixels, providing clear image quality for person identification. The night vision function enables visual control even in darkness. Audio functions include an integrated microphone and speaker, enabling bidirectional communication. An I/O switch contact (button/relay) is also integrated to control door unlocking.

Technology Explained Simply

The 2N® IP Verso is powered via PoE (Power over Ethernet) according to IEEE 802.3af, allowing power and data to be transmitted over a single network cable. Alternatively, a 12V DC adapter can be used. SIP support enables connection to IP phones and IP central units from other manufacturers without requiring a dedicated server. Communication takes place over IP networks, allowing flexible integration into existing IT infrastructures. The integrated camera can capture images during calls, which can be sent via email through the intercom system.

Compatibility and Accessories

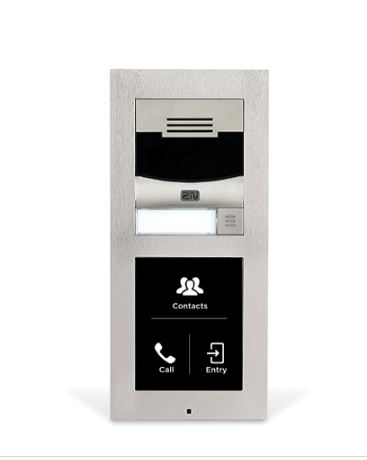

The intercom system is expandable with various modules and accessories. These include, for example, a touch display, fingerprint reader, Bluetooth and RFID reader (125 kHz + 13.56 MHz, NFC, PICard), keypad module, info panel, and a 5-call-button module. For mounting, various frames and mounting plates are available, including surface-mounted and flush-mounted frames in different sizes (1, 2, 3 modules) and colors (Black, Nickel). Spare parts such as a camera cover and mounting elements are also available. The use of RFID and Bluetooth card readers is not permitted according to current guidelines from the Bundesnetzagentur; for such requirements, the 2N Verso 2.0 is intended.

Installation and Mounting

Installation requires a network connection and cabling according to technical specifications. The intercom system is designed for outdoor use and meets the requirements of IP67 certification (dust- and waterproof) and IK10 certification (protection against mechanical impacts).

Operational Advantages

The modular design enables flexible adaptation to different requirements. SIP support simplifies integration into existing communication systems. The ability to send photos via email provides an additional documentation function. Remote configuration via 2N® Remote Configuration enables efficient maintenance and support without physical access to the device. Integrated security features such as the security relay prevent tampering with the lock and enhance the security of the access system.

Technical data
Focus	120° mm
PoE	Yes, 12V DC adapter or PoE802.3af, yes
I/O	Yes, switching contact (button/relay)
Resolution	1280x960
Night vision
IK10 approval
Outdoor
Audio

---
