2N Telecommunications 9154100 2N Helios IP Audio Kit

2N EntryCom IP Audio Kit

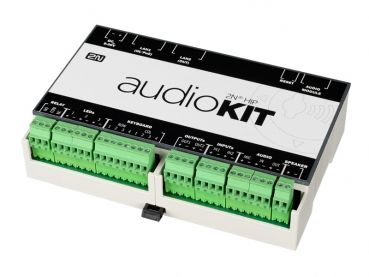

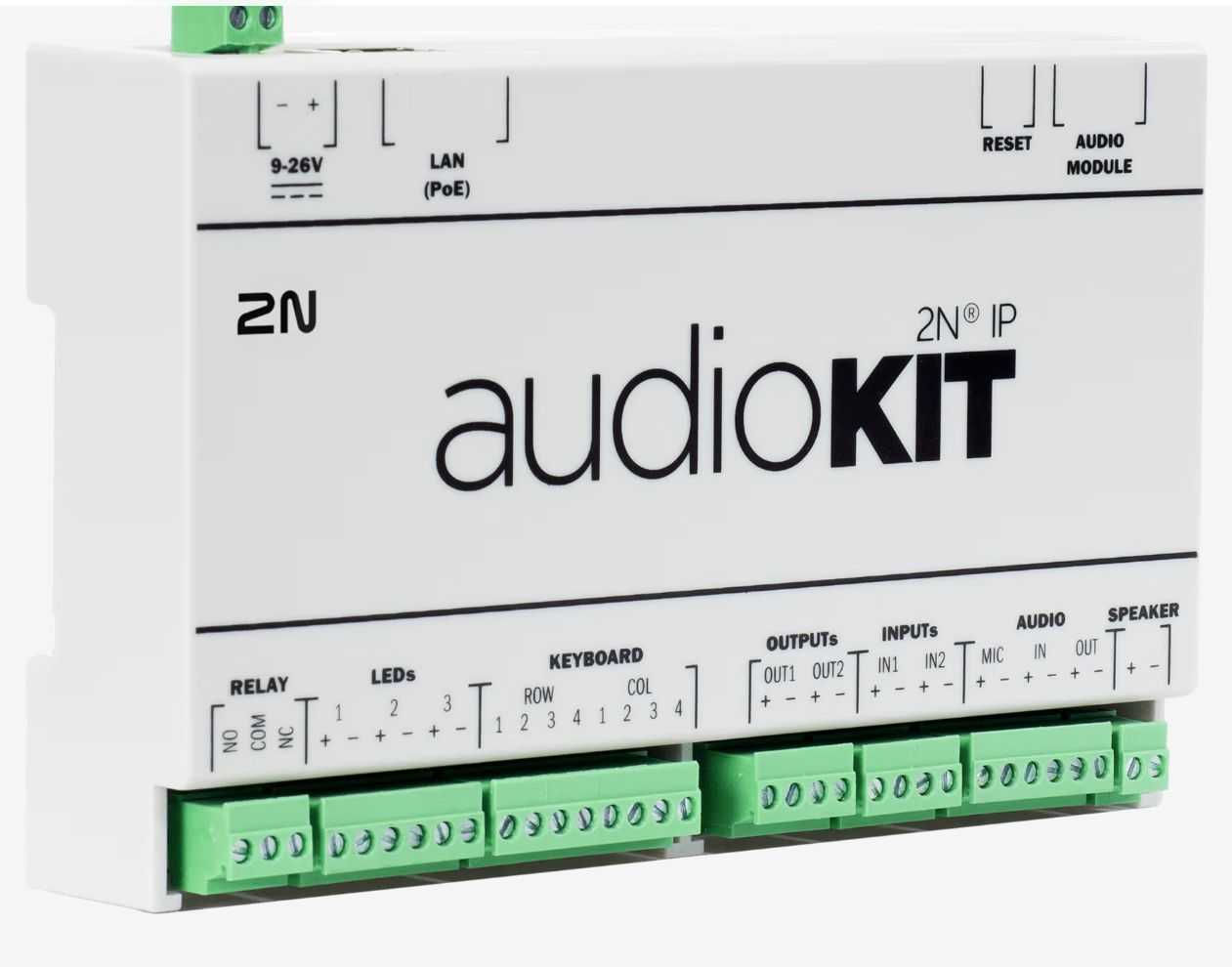

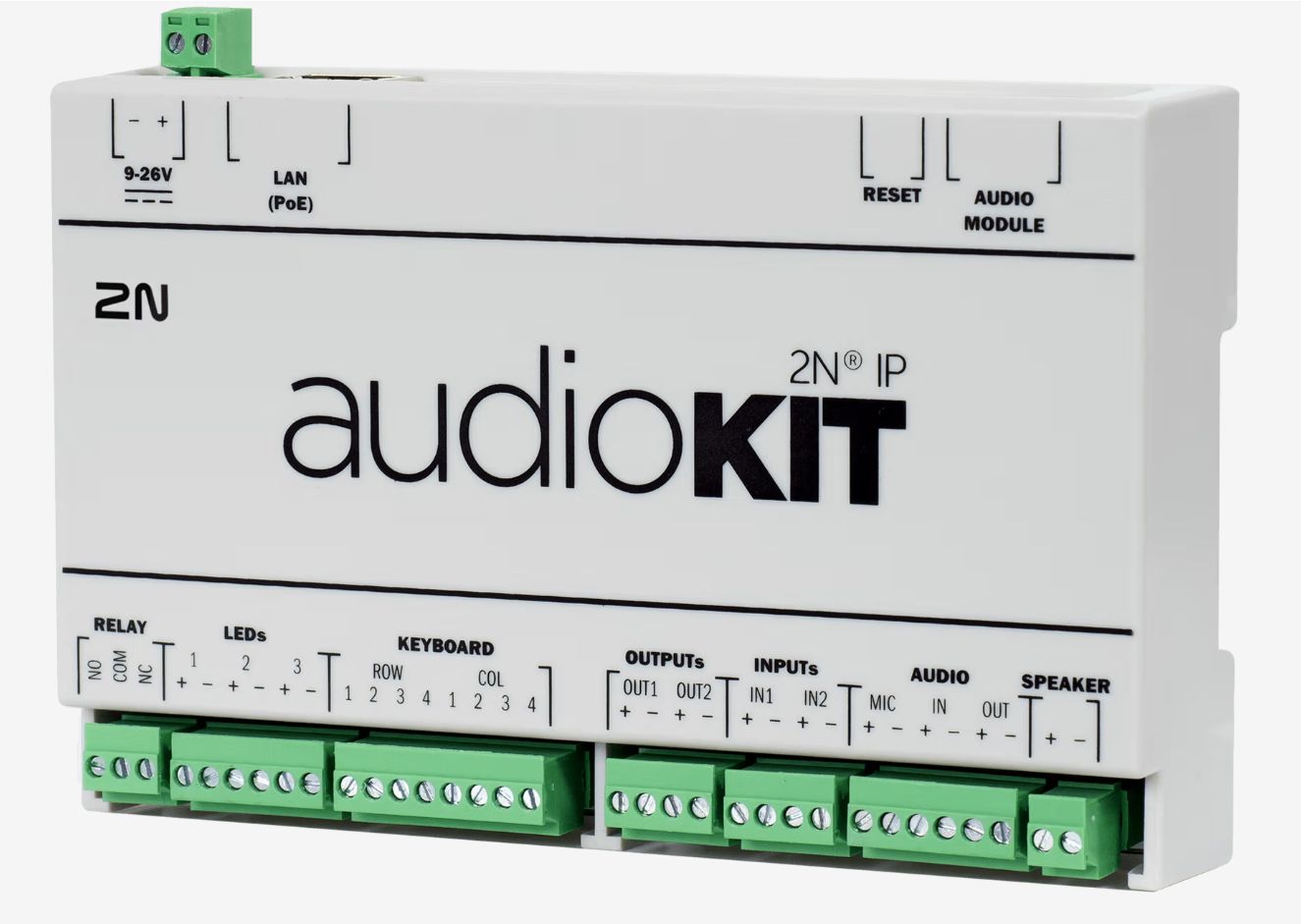

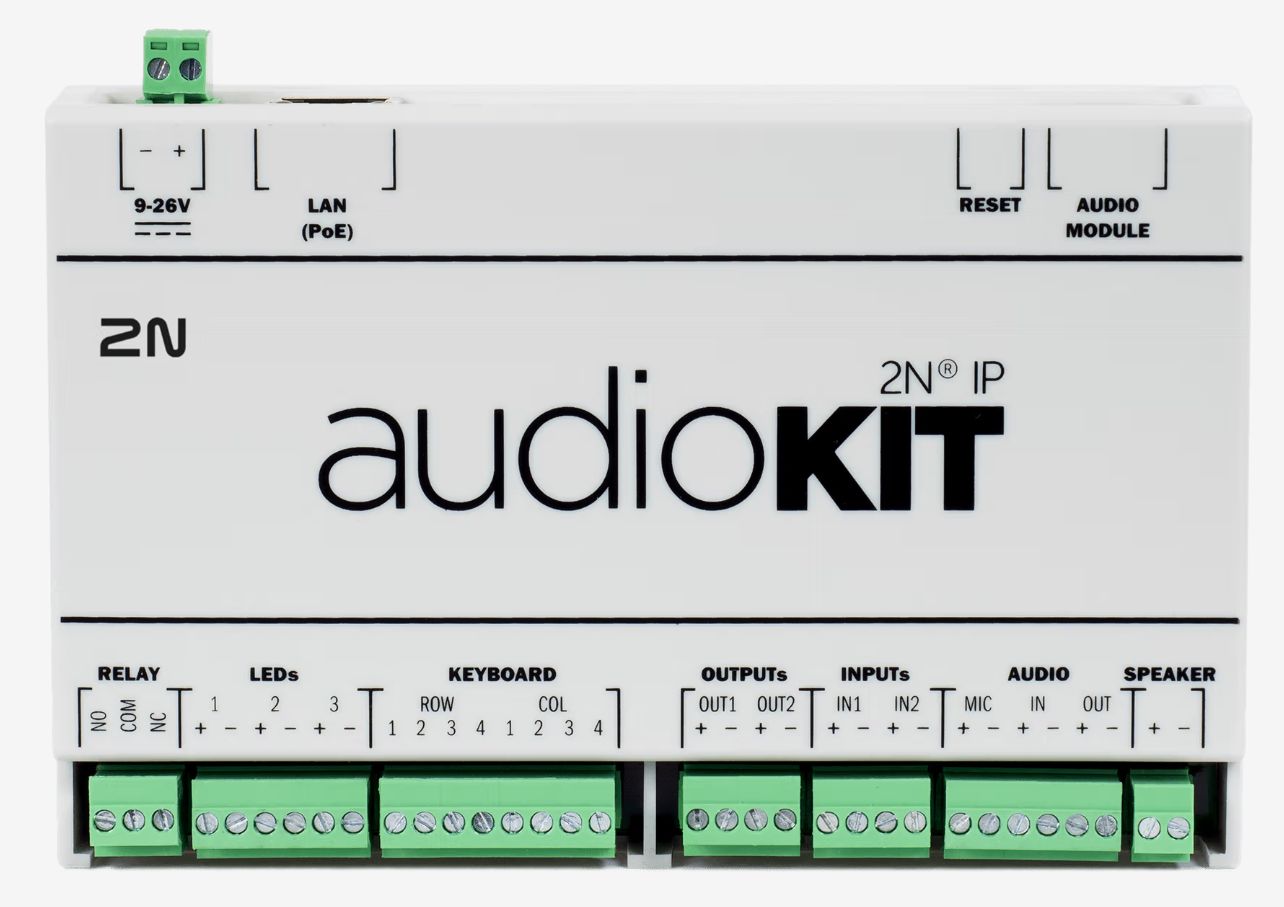

With the 2N EntryCom IP Audio Kit, 2N has once again proven that the wishes and suggestions of installers and users are taken seriously and are incorporated into new product developments. The 2N EntryCom IP Audio Kit is a rear-mounted electronic unit with which you can convert existing door intercoms into modern SIP intercoms. Simple, inexpensive and with the same range of functions as all other 2N EntryCom IP door intercoms.
It couldn't be easier: connect the microphone, loudspeakers and call buttons of the existing intercom system to the 2N EntryCom IP Audio Kit, establish an Ethernet LAN connection and configure the audio kit using a standard web browser. Just like the 2N EntryCom IP door intercoms, the 2N EntryCom IP Audio Kit can also be registered as a SIP extension on an IP telephone system or set up a direct IP call (peer-to-peer).
With the 2N EntryCom IP Audio Kit, individual intercom systems and systems can be implemented for a wide range of applications. But this device is also ideal as an OEM solution for manufacturers of mailbox systems and as a communication element for doorbell panels. Further areas of application for the 2N EntryCom IP Audio Kit include converting existing intercom systems to IP and as a rear version for mailbox systems, steles, individual speaking panels and columns. But the 2N EntryCom IP Audio Kit can also be used as IP built-in electronics for elevators, information systems, barrier systems or cash registers and ATMs.
The 2N EntryCom IP Audio Kit supports the SIP 2.0 protocol with the G.711 voice codec. Up to 16 call buttons can be connected and can be programmed individually. In addition to two digital outputs, two logical inputs and a relay output are available. It is mounted either on a DIN top-hat rail or as a wall mount.
Main features
SIP rear-mounted electronics with Ethernet connection
16 call buttons can be connected
2 digital outputs, 1 relay output
2 logical inputs
Configuration via web browser
DHCP or static IP
up to 3 call destinations per button programmable
Activation of the outputs via DTMF
Areas of application
Mailbox systems
Conversion and retrofitting of existing intercom systems
Barrier systems
Parking garages
ATMs and pay machines
Elevators
Infopoints
