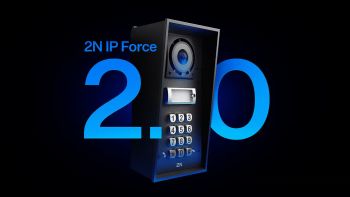

2N Telecommunications 9151302CR
2N Türsprechstelle IP Force 2.0 mit 2 Ruftasten und Kamera content_copy

The 2N IP Force 2.0 is an IP-based video intercom system designed for demanding environments where high security requirements, reliable access control, and precise visitor identification are essential. The device features a 5-megapixel camera that ensures clear colour images even in low light conditions, switching to night vision only in complete darkness. The camera supports WDR (Wide Dynamic Range) to minimise glare effects and is equipped with a wide-angle lens offering a focal length of 1.935 mm, a horizontal field of view of 133°, and a vertical field of view of 112°. This enables comprehensive monitoring of the entrance area and supports visitor verification through adaptive face zoom.

Applications

The IP Force 2.0 is designed for outdoor use and complies with IP67 protection rating, ensuring dust-tight and water-tight conditions even under direct splashing water and short-term submersion. The IK10 rating provides high protection against mechanical impacts, such as shocks or vibrations. The camera is fitted with a dome offering enhanced break resistance, making it particularly suitable for public or industrial facilities where high loads and potential vandalism risks exist.

Functions and Equipment in Detail

The device integrates an audio system with noise suppression, a high-volume speaker, and adaptive volume control to ensure clear communication even in noisy environments. Automatic audio loop tests ensure continuity of sound transmission. The camera supports IR lighting to ensure sufficient visibility in darkness. The use of the Axis ARTPEC-8 SoC enables additional features such as QR code reading, allowing guests to be granted digital access permissions in advance.

Technology Explained Simply

The IP Force 2.0 uses PoE (Power over Ethernet), enabling power supply and data transmission via a single network cable. This simplifies installation and reduces the number of required cables. The integrated OSDP interface (Open Supervised Device Protocol) enables secure, encrypted access via RFID technology and facilitates integration into existing third-party access control systems. The firmware is signed, and the device features a secure key storage and secure boot, enhancing cyber security and protecting the device against unauthorised manipulation.

Compatibility and Accessories

The IP Force 2.0 can be extended with various accessory components, including RFID readers (e.g. IP Force 2.0 RFID Reader 125kHz + 13.56MHz Seos NFC-Ready Wiegand or OSDP), induction loop modules, safety relays, power supply and PoE modules, as well as network I/O relay modules such as AXIS A9188 or AXIS A9210. These components allow flexible adaptation to different access control systems and security requirements. Software solutions such as IP Intercom Gold E-LICENSE or Informacast E-LICENSE, as well as the My2N annual subscription, support remote control and management of the system.

Mounting and Installation

Mounting on exterior walls or doors is done in a weather-resistant housing that meets the requirements of IP67 and IK10 ratings. Connection to a network or video surveillance system is made via standardised protocols, enabling integration into existing infrastructures.

Operational Advantages

The combination of high image quality, robust design, integrated access control, and expandable functions makes the IP Force 2.0 a reliable solution for security applications. Clear communication, precise visitor verification, and easy integration into existing systems increase efficiency and security in daily operations. The use of PoE and the integrated OSDP interface reduces installation complexity and enables flexible scaling of the system.

Technical data
Resolution	max. 2560 x 1920
Focus	1.935 mm / 133° (H), 112° (V) mm
I/O
Night vision
IK10 approval
IR light
PoE
Outdoor
Audio

---
