2N Telecommunications 9151301CRP

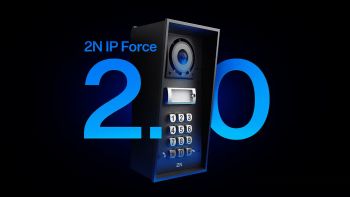

2N Türsprechstelle IP Force 2.0 1 Ruftaste Piktogramme Kamera content_copy

The 2N IP Force 2.0 is an IP-based video intercom system designed for use in demanding environments where high security requirements, reliable access control, and precise visitor identification are essential. The device features a 5-megapixel camera that ensures clear colour images even in low light conditions, switching to night vision only in complete darkness. The camera supports WDR (Wide Dynamic Range) to minimise glare effects and is equipped with a wide-angle lens providing a horizontal field of view of 133° and a vertical field of view of 112°. The focal length is 1.935 mm. An adaptive face zoom supports visitor verification by selectively magnifying faces in the image. The camera is fitted with a dome cover that provides enhanced impact resistance.

Applications

The IP Force 2.0 is designed for outdoor use and meets IP67 protection rating, ensuring dust-tight and water-tight conditions even under direct water jet. The IK10 rating ensures mechanical robustness against strong impacts and vibrations. The device is therefore suitable for industrial facilities, high-security areas, public institutions, or buildings with high security requirements. The integrated IR illumination supports the night vision function and ensures sufficient visibility in dark areas.

Functions and Equipment in Detail

The intercom system features an integrated audio function with noise suppression, a loudspeaker with high volume, and adaptive volume control, enabling clear communication even in noisy environments. Automatic audio loop tests ensure the functionality of the audio transmission. The camera is equipped with an Axis ARTPEC-8 SoC that supports QR code reading functions. This enables the distribution of QR codes to guests, allowing seamless access. The OSDP interface (Open Supervised Device Protocol) enables secure, encrypted RFID access and facilitates integration into third-party access control systems.

Technology Explained Simply

The IP Force 2.0 uses PoE (Power over Ethernet), allowing power supply and data transmission over a single network cable. This reduces installation complexity and enables flexible placement. The maximum resolution is 2560 x 1920 pixels, ensuring detailed image reproduction. The integrated I/O function allows connection to external devices such as relays or sensors. The camera is suitable for use in video surveillance systems from other manufacturers, as it supports standardised protocols.

Compatibility and Accessories

The device can be expanded with various accessory components, including IP Wiegand isolators, 12V power supplies, induction loops, Gigabit PoE+ injectors, AXIS A9188 network I/O relay modules, exit buttons, RFID readers (e.g. IP Force 2.0 RFID reader 125kHz + 13.56MHz NFC-Ready Wiegand), magnetic door contacts, security relays, induction loop modules, AXIS A9210 Network I/O Relay Module, as well as software licences such as My2N annual subscription or IP Intercom Gold E-LICENSE. These components enable individual adaptation to existing security and access control systems.

Installation and Mounting

Installation is carried out via a network cable with PoE support. The intercom system is designed for outdoor use and requires secure mounting on a wall or door. PoE technology reduces the need for additional power supply lines. Device configuration is performed over the network, with integrated software support (e.g. My2N) enabling remote maintenance and monitoring.

t
Operational Advantages

The IP Force 2.0 offers high reliability through robust construction and integrated security features such as secure boot, signed firmware, and secure key storage. The combination of high image quality, night vision, WDR, and adaptive face zoom ensures precise identification of individuals. Support for QR code access and OSDP interfaces simplifies integration into existing systems. Automatic audio loop tests ensure continuous functional monitoring of audio transmission.

Security Technology

The device features advanced cyber security functions realised through collaboration with Axis. The firmware is signed, the boot process is secured, and the key storage is encrypted. This enables rapid response to security incidents and protects against unauthorised access. Control over the device remains with 2N and Axis, ensuring continuous monitoring and maintenance of security functions.

Technical data
Resolution	max. 2560 x 1920
Focus	1,935 mm and 133° (H), 112° (V) mm
I/O
Night vision
IK10 approval
IR light
PoE
Outdoor
Audio

---
