2N Telecommunications 9151301
2N Türsprechstellen IP Force 2.0 1 Ruftaste content_copy

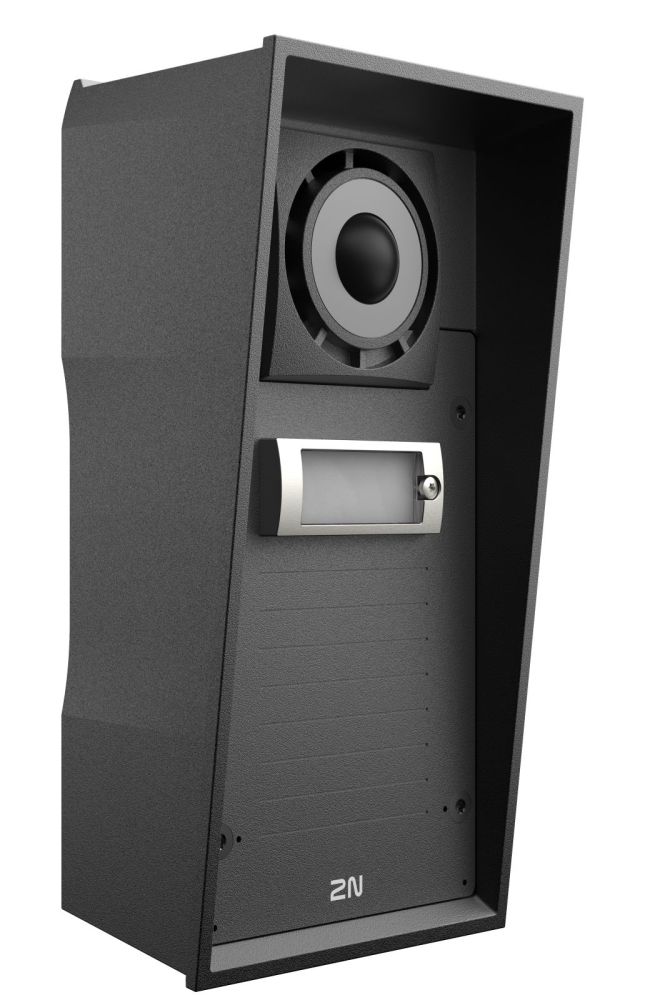

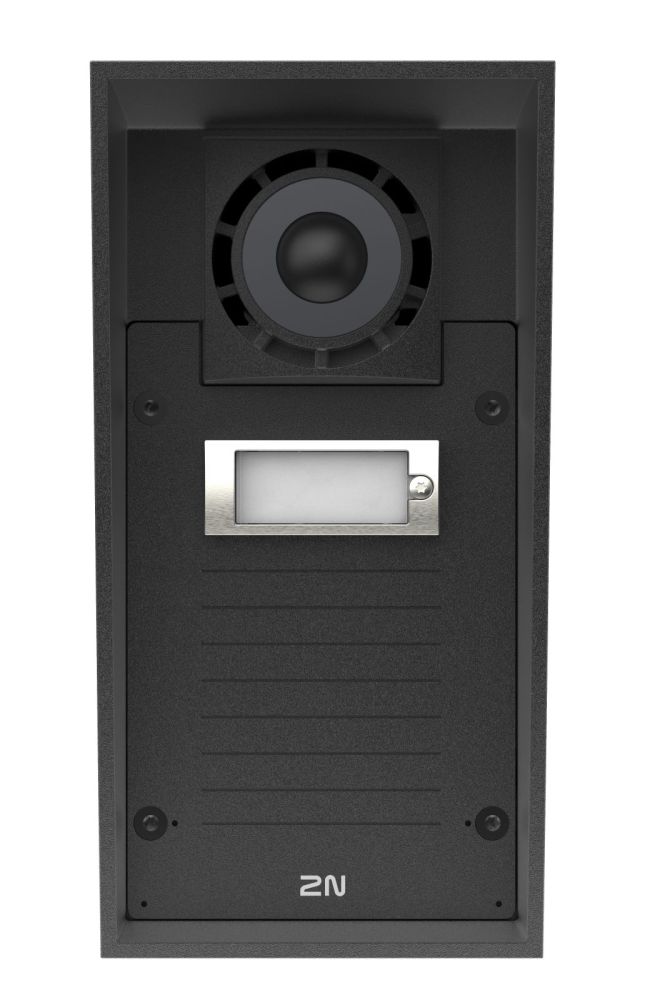

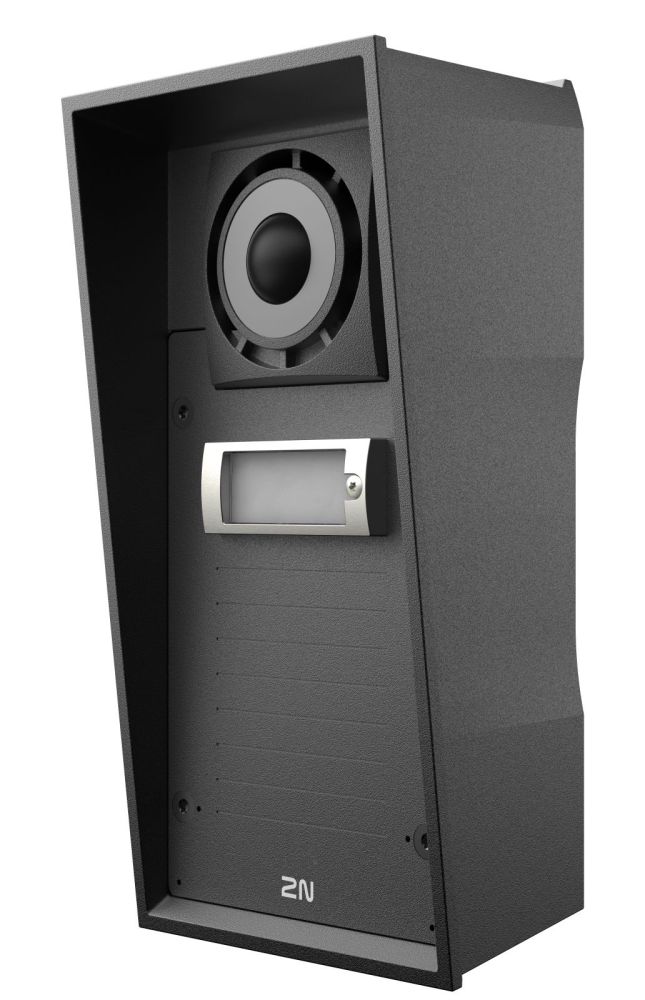

The 2N IP Force 2.0 is a robust IP video intercom system, specifically developed for demanding operating conditions. It serves as an outdoor door station and enables secure, reliable communication as well as access control. The device is designed for environments where maximum security, precise visitor identification, and seamless integration into existing systems are required. The IP Force 2.0 features an integrated camera equipped with a dome to ensure higher break resistance. The intercom station is designed for outdoor use and offers high mechanical stability.

Applications
The 2N IP Force 2.0 is suitable for use in industrial, commercial, and public facilities where high requirements for mechanical and electrical robustness exist. It is particularly suitable for locations with high security needs, such as warehouses, production facilities, high-rise buildings, or public transport facilities. The intercom station can be integrated into existing video surveillance systems from other manufacturers, enabling flexible use in heterogeneous infrastructures.

Functions and Equipment in Detail
The device features an integrated camera used for video surveillance and visitor identification. Audio functions include noise suppression, a loudspeaker with high volume, and adaptive volume control, ensuring clear communication even in noisy environments. Additionally, the device performs automatic audio loop tests to continuously check the functionality of audio transmission. The intercom station is equipped with a call button that prompts the user to initiate communication.

Technology Explained Simply
The IP Force 2.0 is designed for outdoor use and offers high mechanical stability. The IK10 rating ensures protection against strong mechanical impacts, such as shocks or vibrations. Power supply is via PoE (Power over Ethernet) according to IEEE 802.3at, enabling the device to receive both power and data through the network cable. This reduces the number of required cables and simplifies installation.

Compatibility and Accessories
The 2N IP Force 2.0 can be combined with various accessory components to extend its functionality. These include, for example, the AXIS A9188 network I/O relay module with 8 relays, which can be used to control doors or other mechanical components. Other compatible components include the IP Wiegand isolator, magnetic door contacts, exit buttons, power supply variants (for EU, UK, US), PhyLink adapters, safety relays, induction loops, and various software subscriptions such as My2N or plugins for Ccure and Symmetry. These additional modules enable flexible adaptation to different requirements in the fields of access control and security technology.

Mounting and Installation
The installation of the IP Force 2.0 is carried out on an exterior wall or another suitable location that meets the requirements for mechanical and electrical safety. The connection is made via an Ethernet cable, which simultaneously provides power (PoE) and data transmission. The installation requires no additional power sources, as the device is powered via PoE.

Advantages in Operation
The 2N IP Force 2.0 offers high reliability and ease of maintenance during operation. Integrated security features, such as secure boot, signed firmware, and secure key storage, enhance the cyber security of the device. Collaboration with Axis enables a rapid response to security incidents. The automatic audio loop tests ensure that communication functions are always operational. The robust construction and IK10 rating guarantee a long service life even under extreme conditions. Integration into existing systems is simple, as the device can also be used in video surveillance systems from other manufacturers.

Technical data
PoE	Yes, IEEE 802.3at
Outdoor
I/O
Audio
IK10 approval

---
