Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire

Your rating:
Average rating
product review for Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire
( 4 / 5 ) 1 ratings

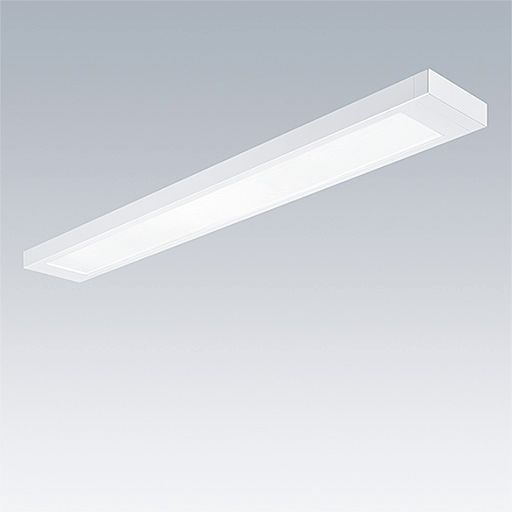

Zumtobel 96636045
This image may differ from the desired article.
341,05 EUR 351,50 EUR
( 405,85 EUR incl. VAT )
≈ £285.46  |  ≈ $374.81
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire
Lieske Part No.:679051
Mfg Part No: 96636045
UPC/EAN: 9010757045118
Weight:0.123 kg
Type:PUNCH 3 LRO MSC 3800-830 L15 HF
Graduated prices net
From piecesPrice per pieces
4338,49 EUR
8335,93 EUR
12333,38 EUR
16330,82 EUR

Product information for Zumtobel 96636045:

The Zumtobel PUNCH 3 LRO MSC 3800-830 L15 HF is a slim LED surface-mounted luminaire for mounting on walls or ceilings. It is designed as an indoor luminaire and is particularly suitable for use in schools and offices, where uniform, glare-free lighting is required. The luminaire features direct light distribution and is equipped with a non-dimmable electronic ballast. The luminaire is supplied with an integrated LED module with a colour temperature of 3000 K, providing a warm white light colour.

Applications

The luminaire is intended for use in indoor environments, particularly in offices, schools, and other workspaces, where high light quality and low glare are important. The light direction is achieved through a luminance-reducing, multi-layered optics (LRO) made of PMMA, which enables backlighting and ensures a UGR value below 19. This provides optimal light distribution with minimal glare.

Functions and Equipment in Detail

The housing is made of steel sheet and is white powder-coated, similar to RAL9016. The end caps are also made of steel sheet and are powder-coated in the same colour. The optics system is closed to prevent damage from electrostatic discharge. The electrical connection is made via a screwless terminal clamp, simplifying installation. The luminaire is equipped with an LED module achieving a luminous efficacy of 128 lm/W.

Technology Explained Simply

The luminaire produces a luminous flux of 3699 lumens at a power consumption of 28.8 watts. The luminous efficacy of 128 lm/W demonstrates the high efficiency of the LED module. The LRO optics (luminance-reducing optics) ensure that the light is evenly distributed and glare is minimised. The UGR value below 19 meets the requirements for glare-free lighting in workspaces. The protection rating IP20 means the luminaire is protected against contact with fingers and against solid foreign objects, but not against water or dust. The impact resistance IK03 indicates that the luminaire is protected against minor mechanical stress. Protection class I requires a protective earth connection.

Compatibility and Accessories

The luminaire can be combined with the Y-suspension fitting (22171581) and the suspension accessories (22171349) to be used as a pendant luminaire. The luminaire is not dimmable and does not feature an integrated dimming function. The screwless terminal clamp enables a quick and secure connection without screws.

Mounting and Installation

Mounting is done on walls or ceilings using surface mounting. The screwless terminal clamp simplifies the electrical connection. When used as a pendant luminaire, mounting with the separate suspension components is required. The luminaire dimensions are 1542 mm length, 162 mm width, and 50 mm height. The weight is 3.8 kg.

Operational Advantages

The luminaire offers high luminous efficacy and uniform light distribution, resulting in efficient and pleasant lighting. The LRO optics reduce glare and ensure good visibility. The use of PMMA in the optics ensures high transparency and durability. The screwless terminal clamp reduces installation time. The luminaire is designed for indoor use and meets the requirements for workspaces in terms of light quality and safety.

General
Light sharingDirect
Operation modeNot dimmable
Type of control gearElectronic
Housing materialsteel sheet
Colour housingwhite (similar to RAL9016)
Housing paint finishPowder coating
End cap materialsteel sheet
End cap colourwhite (similar to RAL9016)
Optical systemlight intensity-reducing, multi-layer optics (LRO) made of PMMA
Optical functionwith backlighting
UGR value< 19
Degree of protectionIP20
Impact strengthIK03
Protection classI
Connection typeScrewless terminal
LED moduleincluded
Colour temperature3000 K
Luminous output28,8 W
Luminous flux3699 lm
Luminous efficacy128 lm/W


Questions & answers

What is the delivery time of Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire ?

The article Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zumtobel 96636045 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire always at the best possible price. We can give you a discount of 2% on Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Zumtobel 96636045 PUNCH 3 LRO MSC 3800-830 L15 HF LED surface-mounted luminaire we can offer you a price of 338,49 EUR per piece. The more you buy, the cheaper the article will be.
