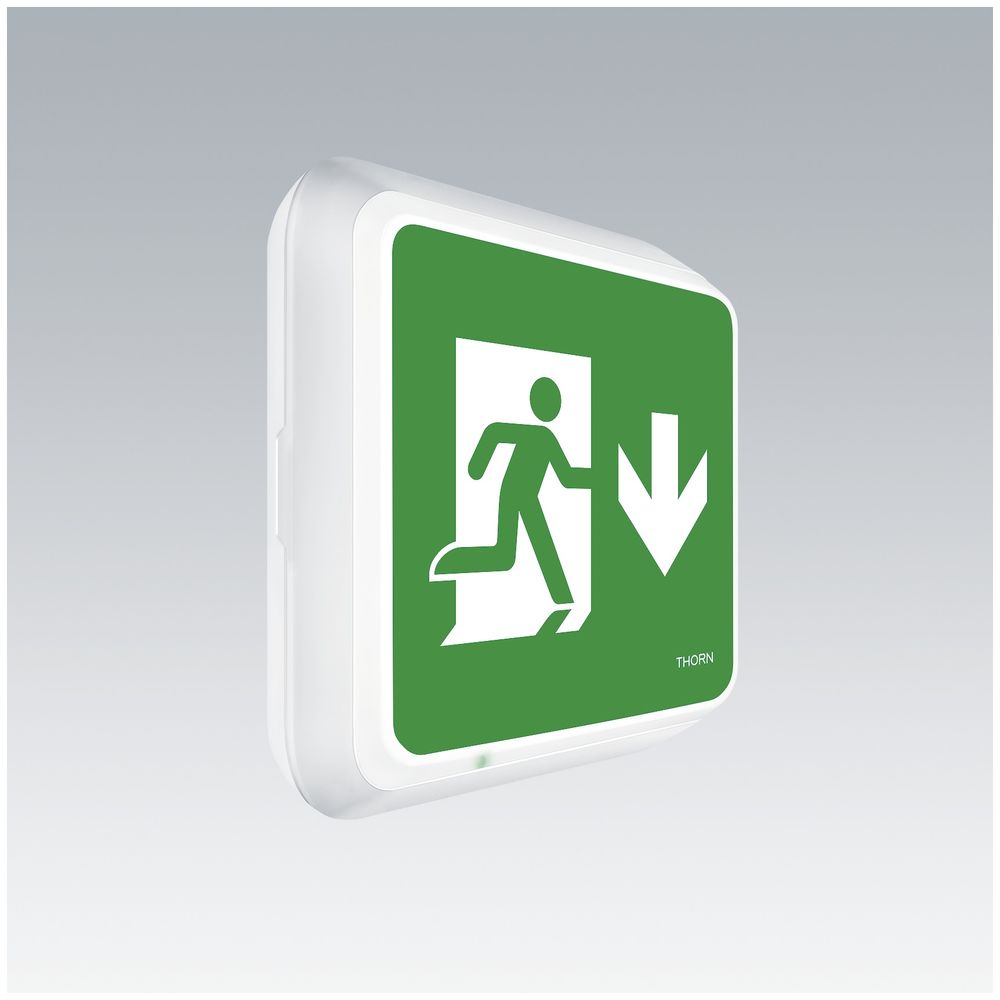

Zumtobel 96635073 Thorn Voy Square 220 P MSW ECP WH SP1E002-D escape sign light

A slim, square LED escape route marking for surface mounting. Luminaire for central emergency lighting supply for individual monitoring of the luminaire via Powerline in conjunction with the eBox system, adjustable emergency light level. NFC interface for addressing, configuration and maintenance using PROset Pen (item no.: 22170290) or PROset app. Alternatively, addressing can also be done visually or using EZ addressing. Mains connection: 220-240 Vac (+/- 10%), 50/60 Hz, 176 -280 Vdc. Housing: polycarbonate (PC), injection-molded, white (RAL 9016). Diffuser: polycarbonate (PC), opal, with glued, printed directional arrow (downwards) as emergency exit pictogram according to ISO 7010. Uniform backlighting of the pictogram, luminance > 500 cd/m² in the white region and an average of 200 cd/m² in mains operation (according to DIN 4844), at least 2 cd/m² in emergency light mode (according to EN 1838). Visibility according to EN 1838: 44 m. Protection class II, IP65, impact resistance: IK10. Ambient temperature: -30°C to +35°C. Suitable for direct wall mounting. Through-wiring is possible with cables of up to 2.5 mm². BESA compatible. Food-safe certification (for use in areas with fully packaged food). Luminaire wired with halogen-free and silicone-free cables. Luminaire with D symbol (for use in areas where accumulation of conductive dust on the luminaire is to be expected).
Type: Voy Square 220 P MSW ECP WH SP1-E002-D
