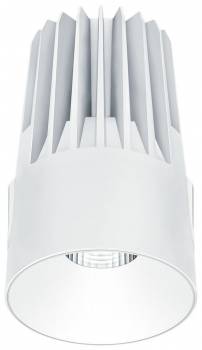

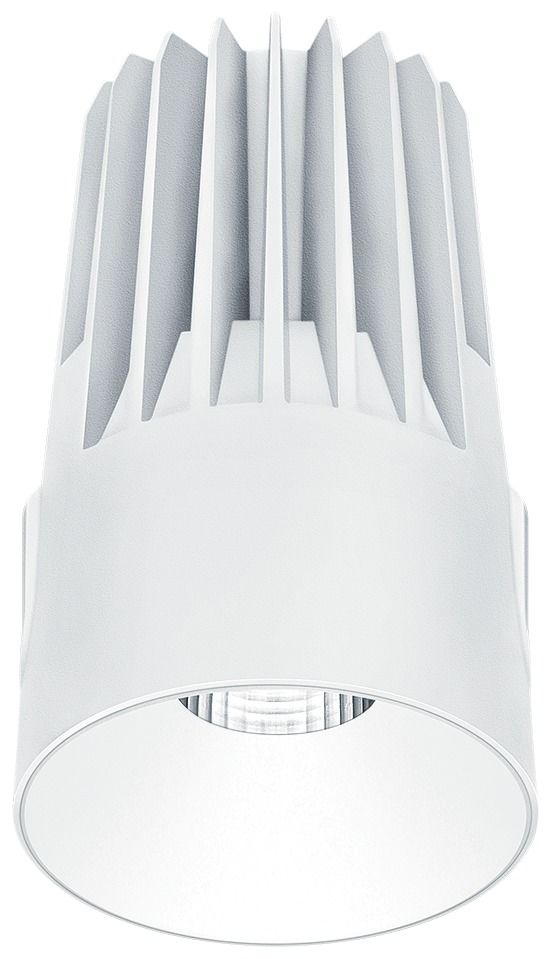

Zumtobel 60210963 DIAMO MD 1400-940 SWI VFL-DWH WH LED light module content_copy

Miniaturized LED light module for precise accent lighting, compact shape and minimalist appearance, precise light distribution without scattered light and very good glare control, highest brilliance thanks to specially designed reflector, equipment: 1/18W LED1400-940, (47 °) VERY WIDEFLOOD beam characteristic, reflector: silver with decorative white edge, matt, color rendering Ra > 90, color temperature 4000 K (neutral white), color tolerance (initial MacAdam): 3, luminaire luminous flux: 1400 lm, luminaire luminous efficacy: 78 lm/W, service life: 50000h at 80% luminous flux, with ballast unit, switchable luminaire, as a multifunctional light head rotatable (180 °) and tiltable (2x20 °) in combination with DIAMO Gimbal installation frame with cover frame or plaster frame (trimless) or with increased visual comfort fixed and rigid in combination with DIAMO Deep Source installation frame/ring, passive cooling through innovative heat management, housing made of die-cast aluminum, micro-structure paint in white, reflector: pure aluminum, silver anodized, luminaire wired halogen-free, connection: 2-pin terminal, luminaire power: 18 W, mains voltage: 220-240V/ 0/50/60Hz, simple tool-free installation of the modules in the installation frame (Gimbal / Deep Source) using CLIX technology, dimensions: diameter 65 x 89 mm, weight: 0.4 kg, Note: Different color combinations (design personalization) of the individual components are possible due to the modular structure and can be ordered as a variant via myDIAMO, Note: DIAMO Gimbal installation frame (1-way, 2-way or 3-way) or DIAMO Deep Source installation frame/ring must be ordered separately!
