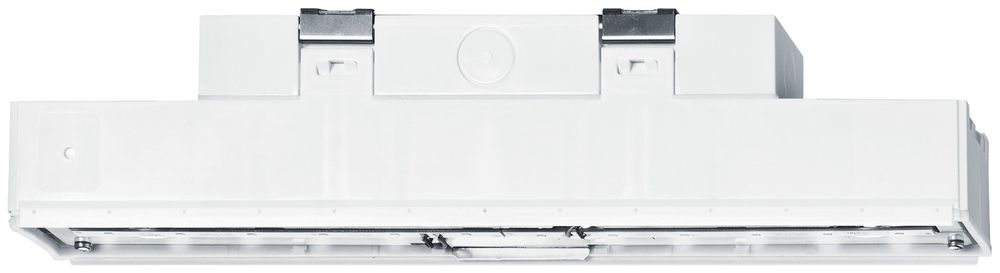

Zumtobel ECOSIGN 160 P MSC E1D WH IP65 safety sign light 42185996

LED safety sign light with individual battery supply for 1 hour of emergency lighting operation in permanent or non-maintained mode, automatic test (autotest) by the light, optional central monitoring via DALI, display of the light status via status LED, addressing also possible optically or via EZ addressing, attachment, operating device with NFC interface for addressing, configuration and maintenance using PROset Pen (item no.: 22170290) or PROset app, addressing also possible optically or via EZ addressing, permanent mode: +5°C to +35°C, non-maintained mode: +5°C to +40°C, power supply: 220-240 V AC (+/- 10%), 50-60 Hz, housing made of white polycarbonate with metal clips on the side, basic version can be mounted on the ceiling without tools, plug-in terminals for through-wiring up to 2.5 mm², tool-free installation of the frameless pictogram, non-maintained and permanent mode adjustable via jumper and NFC interface, luminaire power: 6.6 W, 10% dimming value in emergency mode, protection type: IP65, protection class: SC1, impact resistance: IK03, dimensions of the luminaire with safety mark: 335 x 55 x 238 mm, weight: 0.49 kg, luminaire wired halogen-free, luminaire with D mark (for use in an environment in which deposits of conductive dust on the luminaire can be expected), robust, integrated battery with 3-year guarantee. Valid according to the provisions of the manufacturer's guarantee, available at https://www.zumtobel.com/media/downloads/Garantiebedingungen_DE.pdf, battery guarantee invalid if installation is not carried out until three (3) months after delivery EXW (Incoterms 2010)
Type: ECOSIGN 160 P MSC E1D WH IP65
