Zumtobel TECTON TM 750 WH IP64 electrical feed white 22171615

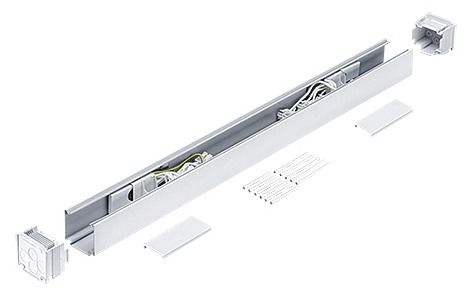

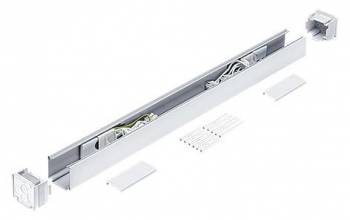

White central electrical feed for the electrical connection of the light strip. 2 sets with plug-in terminals for 5 power cables, 2 x 2 emergency lighting cables and 2 control cables for central load distribution. Corrosion-protected support rail made of profiled, hot-dip galvanized sheet steel with zinc-magnesium coating and polyester resin paint in white. Scope of delivery includes 11 protective hoses, 2 sealing end cap sets (end caps + cover strips) and two contact protection caps for the end of the current conducting profile at the end of the light strip. The central feed can be covered with the ends of two IP64 luminaires (L1000, L1500, L2000) or with cover strips. Always start luminaire installation in the area of the central feed. The entire light line system meets protection class IP64 if the configuration is limited to the following components (core system): fastening elements, support rails, input/output modules, cover strips, light line luminaires, CRAFT II hall luminaires. The entire light line system meets protection class IP64 if the configuration contains one or more of the following components (extended system): RESCLITE PRO safety luminaires, CROSSIGN safety sign luminaires, sensors, wireless controls. Dimensions: 750 x 60 x 54 mm, weight: 1.45 kg
Type: TECTON TM 750 WH IP64
