Zebra WCMTB-T27B6ABE2-A6 TC27, 2D, SE4710, Projected Capacitive, 2-Pin, USB-C, Bluetooth, WLAN, eSIM, 5G, NFC, Android, GMS, black content_copy

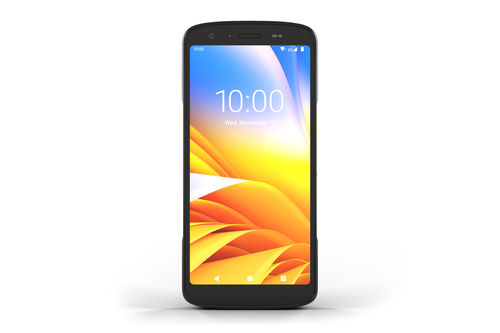

The Zebra TC27 is a rugged mobile data collection terminal specifically designed for use in small and medium-sized enterprises. It combines the user-friendliness of a smartphone with the performance features of an enterprise device. The device features a 6-inch touchscreen with a resolution of 1080 x 2160 pixels and a brightness of 450 cd/m², ensuring clear visibility even in daylight. The screen is coated with Gorilla Glass to prevent scratches and breaks. The integrated 1D/2D barcode scanner function enables fast and accurate data capture, with significantly improved scanning performance compared to using a smartphone camera. The device runs on Android and is designed for updates up to Android 16, enabling long-term use.

Applications
The Zebra TC27 is suitable for a wide range of applications in retail, warehousing and logistics, as well as in the hospitality industry. It can be used as a mobile POS terminal to enable contactless payments via NFC. Support for Apple VAS and Google SmartTap also allows reading of tickets, loyalty cards, gift vouchers, and boarding passes stored in digital wallets. The integrated push-to-talk function supports communication scenarios where employees need to quickly connect with each other, for example in warehouse management or service operations.

Features and Specifications in Detail
The device is equipped with a Qualcomm processor operating at 2.1 GHz, ensuring smooth multitasking. It has 6 GB of RAM and 64 GB of internal flash storage, with expansion up to 2 TB possible via a MicroSD card. The integrated rear camera has a resolution of 16 MP, while the front camera is 5 MP, sufficient for documentation, video calls, or capturing product details. Two built-in microphones with active noise cancellation ensure clear voice transmission, even in noisy environments. An integrated speaker enables audio alerts.

Technology Explained Simply
The Zebra TC27 supports modern network standards: Wi-Fi 6E (802.11ax) and Wi-Fi 5 (802.11ac) provide fast and stable WLAN connections, even in environments with high data traffic. The dual-band function (2.4 GHz/5 GHz) allows use of both frequency bands to minimize interference. Bluetooth 5.2 offers improved audio quality and lower power consumption. Support for NFC enables contactless transactions and communication with other NFC-enabled devices. The device is compatible with 5G, LTE, 3G and supports NanoSIM and eSIM, enabling flexible network connectivity. The GPS function supports multiple satellite systems: A-GPS, GLONASS, BeiDou, Galileo, enabling precise location tracking even in urban or remote areas.

Compatibility and Accessories
The Zebra TC27 is equipped with a USB-C port for data transfer and charging. It comes with an integrated scanner (SE4710) that captures 1D and 2D barcodes. Combining it with a Zebra scanner (e.g., SE4710) enables fast data capture, even with poor barcode quality. Support for contactless payment (NFC) allows integration into existing POS systems. The devices are designed for use with Zebra service programs that support maintenance, updates, and remote management.

Mounting and Installation
The device is compact and ergonomically shaped, with a thickness of 12.5 mm and a height of 165 mm. The contoured surface reduces pressure points and ensures a secure grip. It is designed for use in harsh environments and meets the protection rating IP65 and IP68, meaning it is dust- and water-resistant, even against water drops from a height of 150 cm. The device is splashproof and can be operated even during short-term submersion IP68). The operating temperature range is -10 °C to 50 °C, and the storage temperature range is -40 °C to 70 °C. The relative humidity during operation is 5 to 95 %. The battery has a capacity of 5200 mAh, ensuring sufficient runtime for daily use.

Operational Advantages
The Zebra TC27 offers high ruggedness and longevity, exceeding the lifespan of a typical smartphone. Integrated sensors — ambient light sensor, accelerometer, proximity sensor, magnetometer, pressure sensor — support various applications, such as automatic brightness adjustment, orientation functions, or motion detection. The push-to-talk function enables quick communication between employees. The combination of Android operating system, modern networking technology, and rugged design makes the device a reliable solution for professional use.

Package Contents
The device is delivered without accessories. Batteries, chargers, protective cases, or other accessories are not included in the package. The technical specifications mentioned refer to the device itself, without additional components.

Audio
Number of microphones	2
Built-in microphone
Noise-canceling
Speakers
Battery
Battery capacity	5200 mAh
Camera
Rear camera resolution (numeric)	16 MP
Front camera resolution (numeric)	5 MP
Built-in camera
Front camera
Display
Display diagonal	15.2 cm (6")
Display resolution	1080 x 2160 pixels
Touchscreen type	Capacitive
Display brightness	450 cd/m²
Display glass type	Gorilla Glass
Touchscreen
GPS Performance
GPS (satellite)
Assisted GPS (A-GPS)
GLONASS
BeiDou
Galileo
Memory
Internal memory	6 GB
Flash memory	64 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	2 TB
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Bluetooth version	5.2
SIM card type	NanoSIM + eSIM
Data network	3G, 4G, 5G, LTE
Wi-Fi
Bluetooth
Bluetooth Low Energy (BLE)
Near Field Communication (NFC)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Performance
Product colour	Black
Scanner type	1D/2D
International Protection (IP) code	IP65, IP68
LED indicators
Drop proof
Push-to-Talk (PTT)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Processor
Processor manufacturer	Qualcomm
Processor frequency	2.1 GHz
Processor family	Qualcomm
Built-in processor
Sensors
Ambient light sensor
Accelerometer
Proximity sensor
Magnetometer
Pressure sensor
Software
Operating system installed	Android
Operating system upgradeable
Weight & dimensions
Width	76.3 mm
Depth	12.5 mm
Height	165 mm

---
