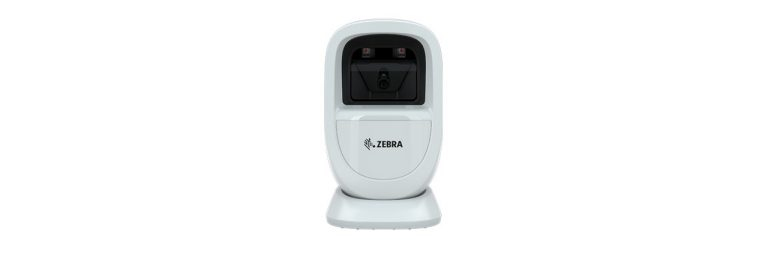

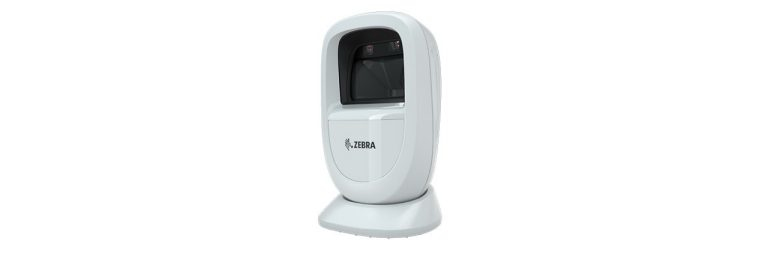

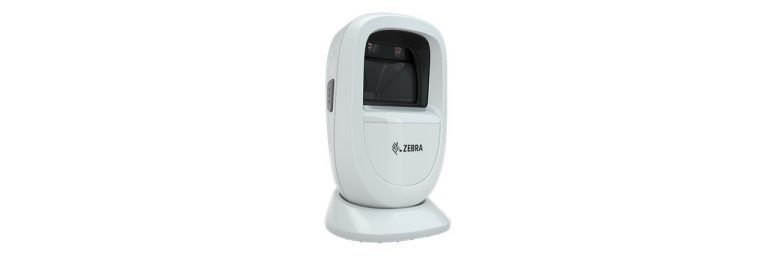

Zebra DS9300 Series, 2D, SR, multi-IF, kit (USB), white
|
-50% 200,77 EUR 401,54 EUR |
|
|
( 238,92 EUR incl. VAT ) ≈ £170.05 | ≈ $224.66 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1037948 |
| Mfg Part No: | DS9308-SRWU2100AZE |
| Weight: | 0.5 kg |

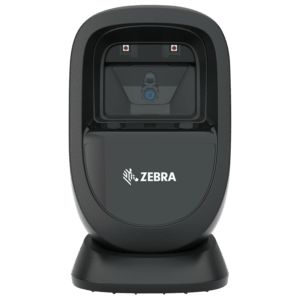

Product information for Zebra DS9308-SRWU2100AZE:
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Cables included | USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | White |
| Certification | EN 50581:2012 RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000 REACH 1907/2006 IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015 UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED) FCC 47 CFR 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| LED indicators | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Power | |
| Power source type | DC |
| Input voltage | 4.5-5.5 V |
| Power consumption | 350 mA |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Codabar 125, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Industrial 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Wavelength | 660 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 83 mm |
| Height | 145 mm |
| Weight | 318 g |
Questions & answers
What is the delivery time of Zebra DS9300 Series, 2D, SR, multi-IF, kit (USB), white?
The article Zebra DS9300 Series, 2D, SR, multi-IF, kit (USB), white is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zebra DS9308-SRWU2100AZE to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zebra DS9300 Series, 2D, SR, multi-IF, kit (USB), white always at the best possible price. We can give you a discount of 2% on Zebra DS9300 Series, 2D, SR, multi-IF, kit (USB), white if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
