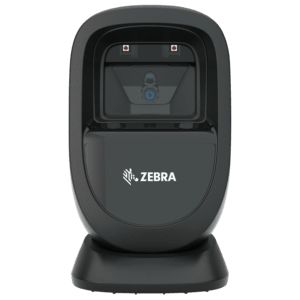

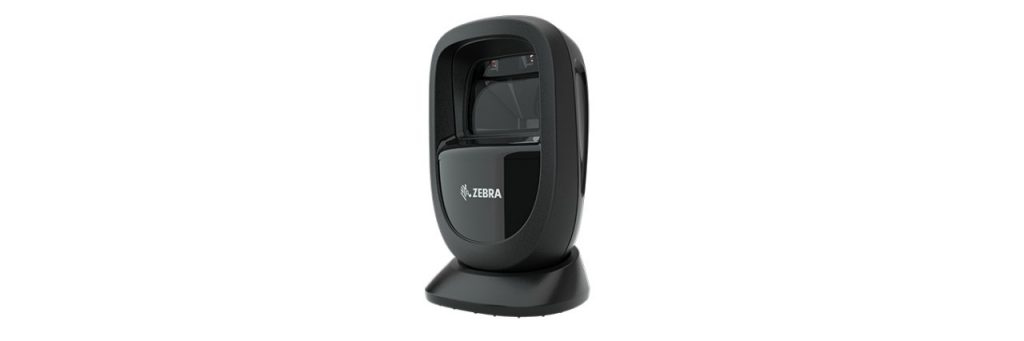

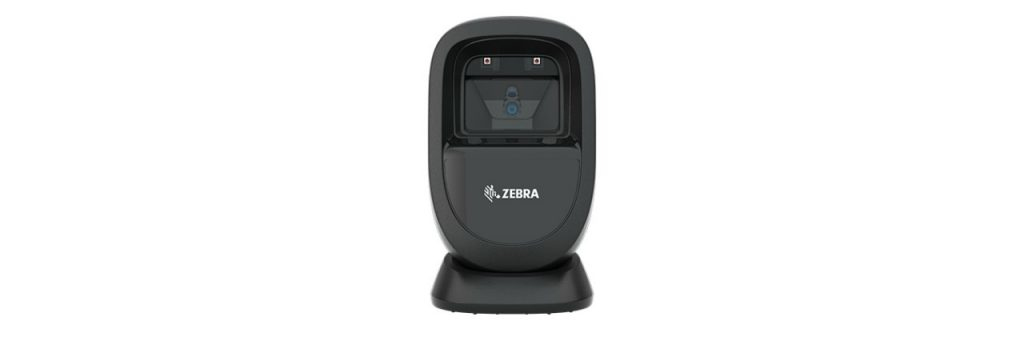

Zebra DS9308, 2D, SR, multi-IF, EAS, black
|
-50% 219,66 EUR 439,31 EUR |
|
|
( 261,40 EUR incl. VAT ) ≈ £186.05 | ≈ $245.80 plus delivery charges: 53,00 € |
|
| Made to order · Expected to be available from 02.12.2026info_outline | |
| End-Of-Life: | 05. Oct 2026 |
|---|---|
| Lieske Part No.: | 1539850 |
| Mfg Part No: | DS9308-SR00004ZCWW |
| Weight: | 0.434 kg |
| Type: | PERP |
Product information for Zebra DS9308-SR00004ZCWW:
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Power | |
| Power source type | RS-232, USB |
| Input voltage | 5.5 V |
| Scanning | |
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance | 66 cm |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Pitch reading angle | -60 - 60° |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 83 mm |
| Height | 145 mm |
| Weight | 318 g |
Questions & answers
What is the delivery time of Zebra DS9308, 2D, SR, multi-IF, EAS, black?
The article Zebra DS9308, 2D, SR, multi-IF, EAS, black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zebra DS9308-SR00004ZCWW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zebra DS9308, 2D, SR, multi-IF, EAS, black always at the best possible price. We can give you a discount of 2% on Zebra DS9308, 2D, SR, multi-IF, EAS, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
