Zebra DS3678-SR, BT, 2D, SR, black, green
|
-44% 364,06 EUR 655,31 EUR |
|
|
( 433,23 EUR incl. VAT ) ≈ £307.63 | ≈ $407.02 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 16 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 05. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 869961 |
| Mfg Part No: | DS3678-SR0F003VZWW |
| UPC/EAN: | 5711783323167 |
| Weight: | 0.565 kg |
| Type: | PERP |
Further Wired Handheld Scanner from ZebraFurther products in category Wired Handheld Scanner
All products of Zebra
Product information for Zebra DS3678-SR0F003VZWW:

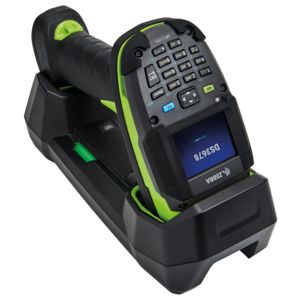

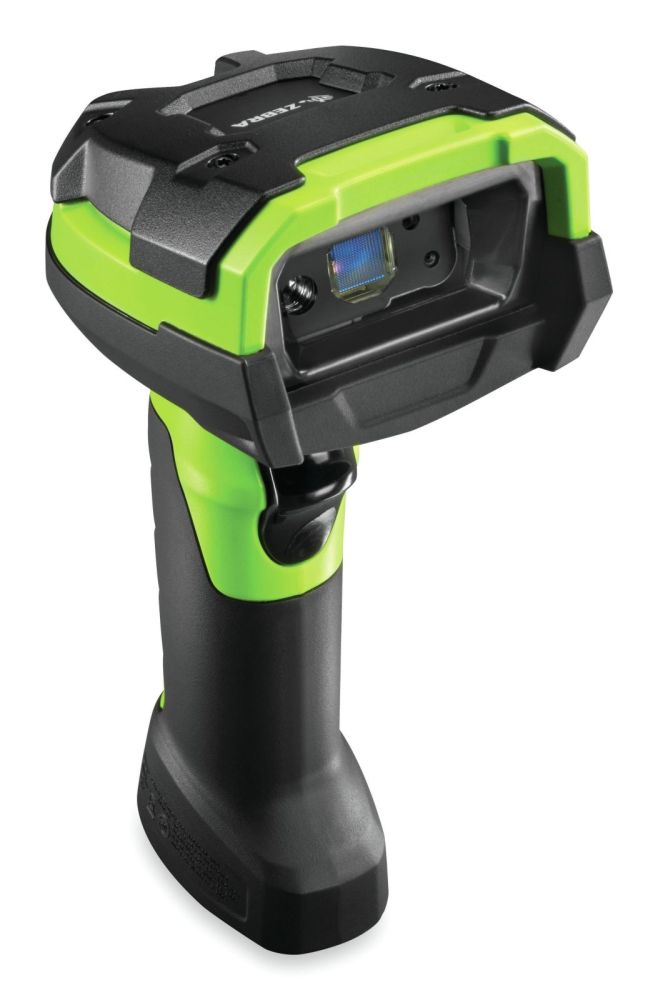

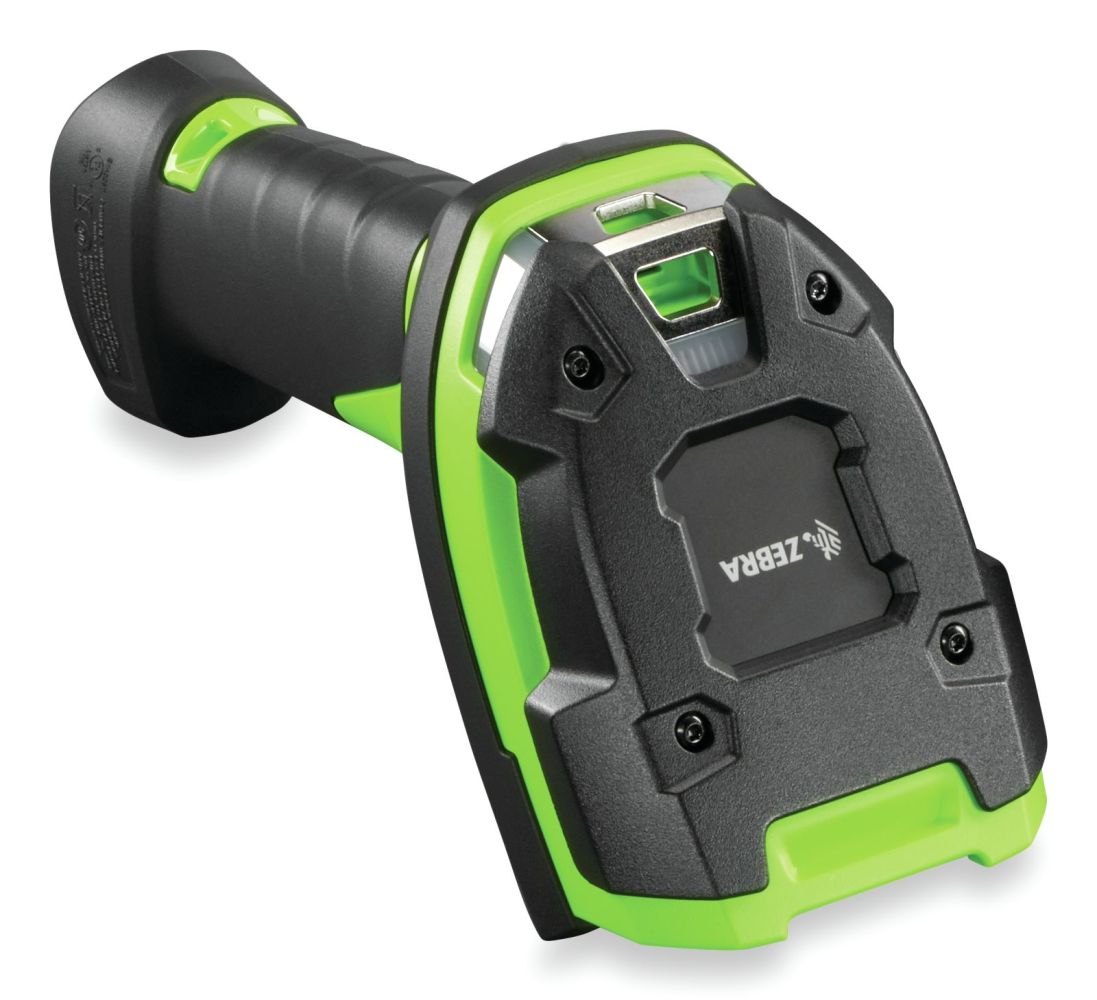

Bluetooth scanner, industry, 2D, imager (standard range), protection class: IP67, order separately: interface cable, charging/transmitter cradle, power supply unit, power cable, colour: black, green
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Cables included | USB |
| Charging base | |
| Stand included | |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| Product colour | Black, Green |
| LED indicators | |
| Programming function | |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | |
| Ethernet LAN | |
| Power | |
| Power source type | Battery |
| Number of reads per charge | 100000 |
| Scanning | |
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 610 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 407 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Zebra DS3678-SR, BT, 2D, SR, black, green?
The article Zebra DS3678-SR, BT, 2D, SR, black, green is currently in stock
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zebra DS3678-SR0F003VZWW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zebra DS3678-SR, BT, 2D, SR, black, green always at the best possible price. We can give you a discount of 2% on Zebra DS3678-SR, BT, 2D, SR, black, green if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
