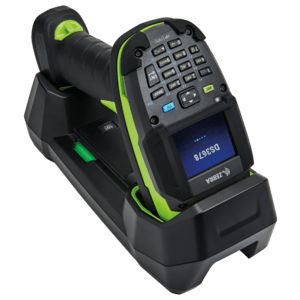

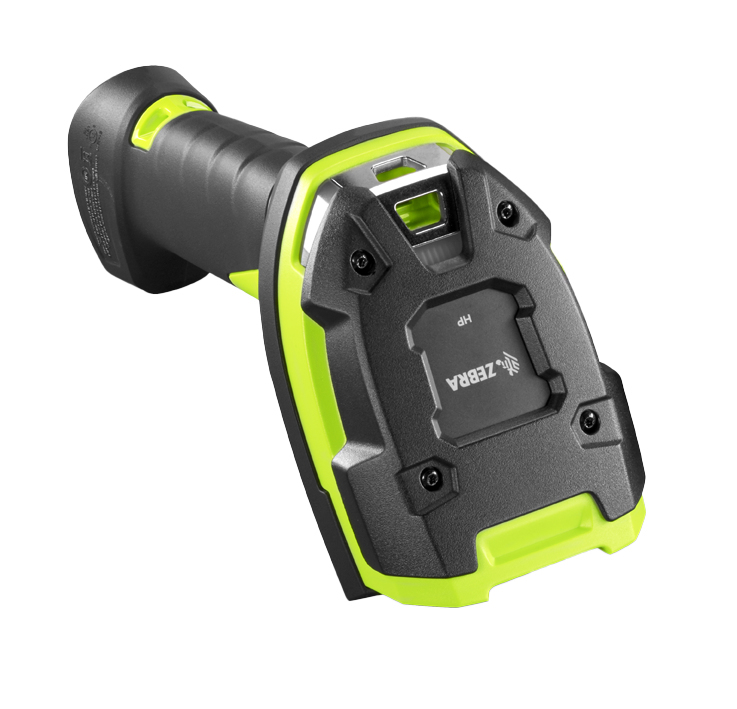

Zebra DS3678-HP, BT, 2D, HP, black, green
|
-44% 444,51 EUR 800,13 EUR |
|
|
( 528,97 EUR incl. VAT ) ≈ £375.61 | ≈ $496.96 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 05. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 244241 |
| Mfg Part No: | DS3678-HP2F003VZWW |
| Weight: | 0.51 kg |
| Type: | PERP |
Further Handheld terminals from ZebraFurther products in category Handheld terminals
All products of Zebra
Product information for Zebra DS3678-HP2F003VZWW:
Bluetooth scanner, industry, 2D, imager (high performance), protection class: IP67, order separately: interface cable, charging/transmitter cradle, power supply unit, power cable, colour: black, green
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| Product colour | Black, Green |
| LED indicators | |
| Programming function | |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | |
| Ethernet LAN | |
| Power | |
| Power source type | Battery |
| Number of reads per charge | 100000 |
| Scanning | |
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 411 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
