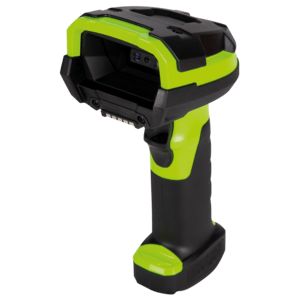

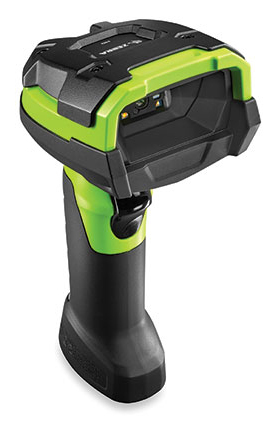

Zebra DS3608-HD, 2D, HD, multi-IF, kit (USB), black, green
|
-43% 338,85 EUR 595,04 EUR |
|
|
( 403,23 EUR incl. VAT ) ≈ £286.33 | ≈ $378.83 plus delivery charges: 53,00 € |
|
| Made to order · Expected to be available from 18.10.2026info_outline | |
| End-Of-Life: | 05. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 407047 |
| Mfg Part No: | DS3608-HD3U4602VZW |
| Weight: | 0.618 kg |
| Type: | PERP |
Further Wired Handheld Scanner from ZebraFurther products in category Wired Handheld Scanner
All products of Zebra
Product information for Zebra DS3608-HD3U4602VZW:
handheld scanner, industry, 2D, imager (high density), multi-interface (RS232, KBW, USB), protection class: IP67, incl.: cable (USB), colour: black, green
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| Product colour | Black, Green |
| LED indicators | |
| Programming function | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Ethernet LAN | |
| Power | |
| Power source type | Battery |
| Number of reads per charge | 100000 |
| Scanning | |
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 309 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Zebra DS3608-HD, 2D, HD, multi-IF, kit (USB), black, green?
The article Zebra DS3608-HD, 2D, HD, multi-IF, kit (USB), black, green is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zebra DS3608-HD3U4602VZW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zebra DS3608-HD, 2D, HD, multi-IF, kit (USB), black, green always at the best possible price. We can give you a discount of 2% on Zebra DS3608-HD, 2D, HD, multi-IF, kit (USB), black, green if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
