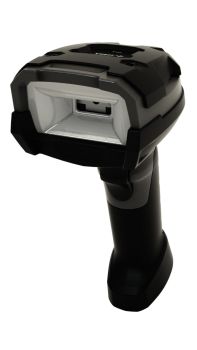

Zebra DS3608-DPA0002VZWW DS3608 RUGGED AREA IMAGER
|
910,41 EUR |
|
|
( 1.083,39 EUR incl. VAT ) ≈ £762.92 | ≈ $1,022.39 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2122140 |
| Mfg Part No: | DS3608-DPA0002VZWW |
| Weight: | 0.4 kg |
| Type: | PERP |
Product information for Zebra DS3608-DPA0002VZWW:
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| International Protection (IP) code | IP65 |
| Product colour | Black, Grey |
| Certification | RoHS EN 50581: 2012 |
| LED indicators | |
| Buzzer | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Power | |
| Power source type | RS-232, USB |
| Input voltage | 4.5 - 5.5 V |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 655 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 65° |
| Yaw reading angle | 0 - 65° |
| Weight & dimensions | |
| Width | 77 mm |
| Depth | 132 mm |
| Height | 185 mm |
| Weight | 304 g |
Questions & answers
What is the delivery time of Zebra DS3608-DPA0002VZWW DS3608 RUGGED AREA IMAGER?
The article Zebra DS3608-DPA0002VZWW DS3608 RUGGED AREA IMAGER is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zebra DS3608-DPA0002VZWW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zebra DS3608-DPA0002VZWW DS3608 RUGGED AREA IMAGER always at the best possible price. We can give you a discount of 2% on Zebra DS3608-DPA0002VZWW DS3608 RUGGED AREA IMAGER if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
