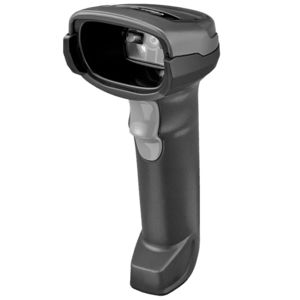

Zebra DS2278, BT, 2D, multi-IF, kit (USB), white
|
-5% 110,33 EUR 115,83 EUR |
|
|
( 131,29 EUR incl. VAT ) ≈ £92.46 | ≈ $123.90 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 05. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1024705 |
| Mfg Part No: | DS2278-SR6UMC00AZW |
| Weight: | 0.37 kg |
| Type: | PERP |
Product information for Zebra DS2278-SR6UMC00AZW:
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2400 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | White |
| LED indicators | |
| Built-in display | |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Bluetooth, USB |
| USB version | 2.0 |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | |
| Power | |
| Power source type | Battery, DC |
| Number of batteries supported | 1 |
| Battery life | 84 h |
| Input voltage | 4.5 - 5.5 V |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 90 mm |
| Height | 175 mm |
| Weight | 214 g |
Questions & answers
What is the delivery time of Zebra DS2278, BT, 2D, multi-IF, kit (USB), white?
The article Zebra DS2278, BT, 2D, multi-IF, kit (USB), white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zebra DS2278-SR6UMC00AZW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zebra DS2278, BT, 2D, multi-IF, kit (USB), white always at the best possible price. We can give you a discount of 2% on Zebra DS2278, BT, 2D, multi-IF, kit (USB), white if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
