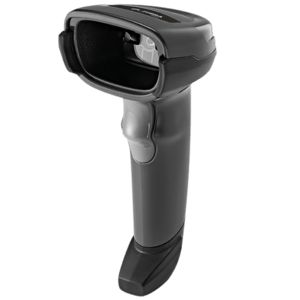

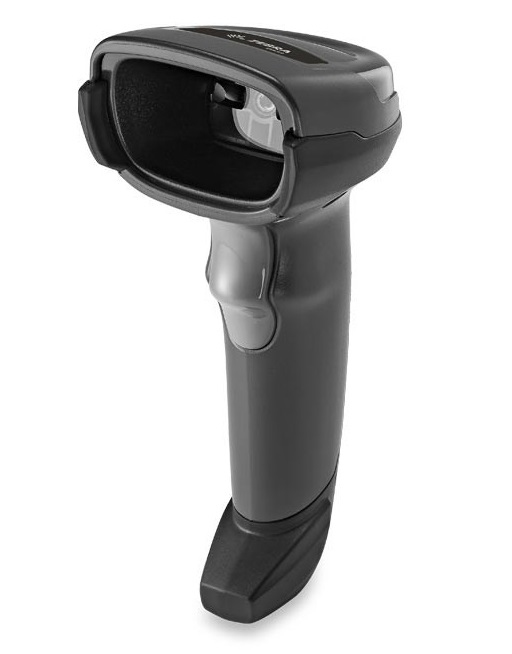

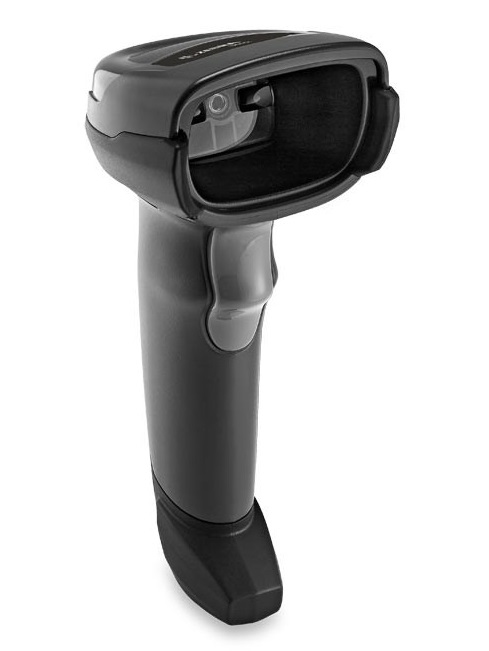

Zebra DS2208, 2D, multi-IF, kit (USB), black
|
-39% 89,67 EUR 146,40 EUR |
|
|
( 106,71 EUR incl. VAT ) ≈ £75.86 | ≈ $100.25 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 13. Jan 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 768447 |
| Mfg Part No: | DS2208-SR7U2100AZW |
| Weight: | 0.33 kg |
| Type: | PERP |
Further Wired Handheld Scanner from ZebraFurther products in category Wired Handheld Scanner
All products of Zebra
Product information for Zebra DS2208-SR7U2100AZW:
handheld scanner, retail, 2D, imager, multi-interface (RS232, KBW, USB), protection class: IP42, incl.: cable (USB), colour: black
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Cables included | Micro-USB |
| Charging base | |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| LED indicators | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
| Power | |
| Power source type | DC |
| AC adapter output voltage | 5 V |
| Power consumption | 250 mA |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Working distance | 36.8 cm |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Zebra DS2208, 2D, multi-IF, kit (USB), black?
The article Zebra DS2208, 2D, multi-IF, kit (USB), black is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zebra DS2208-SR7U2100AZW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zebra DS2208, 2D, multi-IF, kit (USB), black always at the best possible price. We can give you a discount of 2% on Zebra DS2208, 2D, multi-IF, kit (USB), black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
