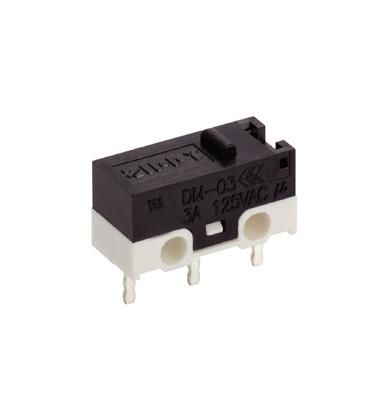

Zander Aachen 932190 DM-03S-9PZ, micro switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 1000 pieces | |
| Lieske Part No.: | 445840 |
|---|---|
| Mfg Part No: | 932190 |
| Weight: | 0.001 kg |
Product information for Zander Aachen 932190:
Product Description:
The DM series consists of precise subminiature micro switches designed for applications requiring utmost precision in a compact form factor. With dimensions of only 12.8 x 6.5 x 5.8 mm (base unit), these switches are ideal for use in alarm systems, consumer electronics, controllers, and elevators.
Equipped with an SPDT contact, solder pin connection, and flat lever actuator, the DM series is versatile and reliable. Actuation force varies by model and ranges between 15 and 150 gf.
Key Features:
- Subminiature micro switch for compact applications
- Flat lever actuator (14 mm or 31 mm, depending on model)
- Solder pin connection
- Easy mounting with two M2 screws
- SPDT contact for flexible switching solutions
- High precision in a small form factor
Technical Data:
- Series: DM
- Applications: Alarm systems, consumer electronics, controllers, elevators
- Mounting: 2 M2 screws
- Contact type: SPDT (Single Pole Double Throw)
- Max. switching capacity: - AC: 125 V; 3 A
- Connection: Solder pin
- Actuator: Flat lever (14 mm or 31 mm)
- Actuation force: - L: 15 - 90 gf (variant-dependent)
- Dimensions (base unit): 12.8 x 6.5 x 5.8 mm
- Actuation force conversion: 1 gf = 0.980665 cN
- DC: 60 V; 0.2 A
- S: 22 - 150 gf (variant-dependent)
Variants and Order Numbers:
- DM-03S-1PZ: Flat lever 14 mm (Order No. 932110)
- DM-03S-9PZ: Flat lever 31 mm (Order No. 932190)
Included Items:
- 1x DM series micro switch (varies by model)
- Technical datasheet
Application Areas:
- Alarm systems
- Consumer electronics
- Controllers
- Elevators
Type: DM-03S-9PZ
The item price shown refers to 1000 pieces Zander Aachen 932190
