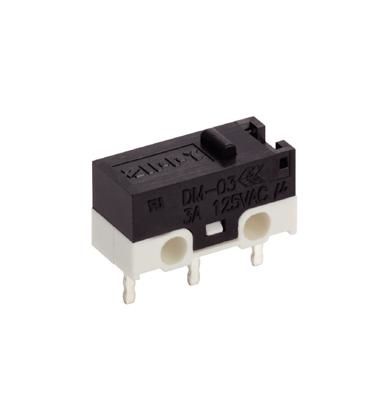

Zander Aachen 932110 DM-03S-1PZ, micro switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 1000 pieces | |
| Lieske Part No.: | 445645 |
|---|---|
| Mfg Part No: | 932110 |
| Weight: | 0.001 kg |
Product information for Zander Aachen 932110:
Product Description:
The DM series consists of subminiature micro switches specially designed for applications that require high precision in the smallest possible space. With extremely compact dimensions of just 12.8 x 6.5 x 5.8 mm (base element), these switches are ideal for use in devices with limited space. Typical areas of application include alarm systems, consumer electronics, control units, and elevators.
The DM series micro switch features a 1-pole changeover contact and offers a maximum switching capacity of 125 V AC at 3 A or 60 V DC at 0.2 A. The connection is made via solder pins, allowing for quick and easy installation. Mounting is done using two M2 screws, ensuring secure and stable assembly.
The switch offers a selection of flat levers in different lengths (14 mm or 31 mm) and two actuation force variants (L and S). Depending on the variant, these forces range from 15 to 150 gf, allowing for precise adaptation to the specific application. Thanks to its high precision and versatility, the DM micro switch is ideal for demanding applications in safety-critical and space-sensitive systems.
Technical Data:
Application possibilities:
- Alarm systems
- Consumer electronics
- Control units
- Elevators
Mounting:
- 2 screws M2
Contact:
- 1 changeover contact
Maximum switching capacity:
- AC 125 V, 3 A
- DC 60 V, 0.2 A
Connection:
- Solder pin
Actuator:
- Flat lever (14 mm or 31 mm)
Actuation force (depending on variant):
- L: 15 - 90 gf
- S: 22 - 150 gf
Dimensions (base element):
- Width: 12.8 mm
- Height: 6.5 mm
- Depth: 5.8 mm
Available Variants:
- Order number: DM-03S-1PZ (Flat lever 14 mm) – Item number: 932110
- Order number: DM-03S-9PZ (Flat lever 31 mm) – Item number: 932190
Type: DM-03S-1PZ
The item price shown refers to 1000 pieces Zander Aachen 932110
