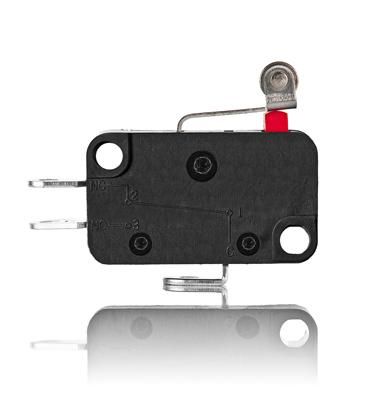

Zander Aachen 923342 VMN-10S-04C0Z, micro switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 1000 pieces | |
| Lieske Part No.: | 445453 |
|---|---|
| Mfg Part No: | 923342 |
| Weight: | 0.01 kg |
Product information for Zander Aachen 923342:
Product Description:
The VMN-10S-04C0Z is a reliable micro switch from the VMN series, designed for demanding applications in household appliances, power tools, manufacturing equipment, and air conditioning systems. Equipped with a 24 mm offset lever and 6.3 mm quick-connect terminals, this switch provides a robust and precise switching solution for a wide range of uses.
With a high switching capacity of up to AC 250 V; 16 A (variant-dependent) and easy mounting via two M3 screws, the VMN-10S-04C0Z stands out for its versatility and durability.
Key Features:
- Offset lever (24 mm) as actuator
- Quick-connect terminals (6.3 mm)
- Single-pole micro switch with SPDT contact
- Easy mounting with two M3 screws
- High switching capacity: Up to AC 250 V; 16 A (variant-dependent)
Technical Data:
- Series: VMN
- Model: VMN-10S-04C0Z
- Actuator: Offset lever, 24 mm
- Connection: Quick-connect terminals (6.3 mm)
- Mounting: 2 M3 screws
- Contact type: SPDT (Single Pole Double Throw)
- Max. switching capacity: AC 250 V; 16 A (variant-dependent)
- Dimensions (base unit): 28 x 16 x 10.3 mm
- Actuation force: Variant-dependent
- Actuation force conversion: 1 gf = 0.980665 cN
Included Items:
- 1x Micro switch VMN-10S-04C0Z
- Technical datasheet
Application Areas:
- Household appliances
- Power tools
- Manufacturing equipment
- Air conditioning systems
Order Number:
- VMN-10S-04C0Z (Order No. 923342)
Type: VMN-10S-04C0Z
The item price shown refers to 1000 pieces Zander Aachen 923342
