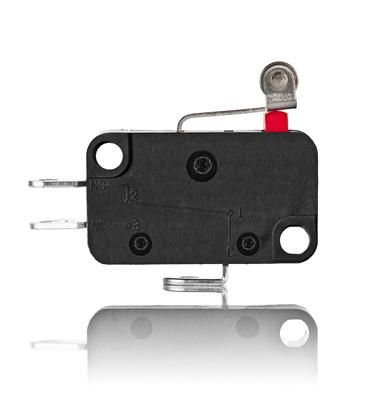

Zander Aachen 923320 VMN-10S-02A0Z, micro switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 1000 pieces | |
| Lieske Part No.: | 445370 |
|---|---|
| Mfg Part No: | 923320 |
| Weight: | 0.01 kg |
Product information for Zander Aachen 923320:
Product Description:
The VMN series includes versatile micro switches designed specifically for series production. They impress with high switching capacity and flexible connection options. The compact dimensions of 28 x 16 x 10.3 mm (base element) allow for use even in confined spaces. Thanks to flexible connection types – solder lugs or 6.3 mm flat connectors – the switches can be easily integrated into a wide range of systems.
The VMN series micro switch is equipped with a 1-pole changeover contact and can handle a maximum switching capacity of up to 250 V AC and 16 A (depending on the variant). Mounting is done using two M3 screws, ensuring a secure installation. Different actuation forces (B, D, N, L, S, H, Specify H) enable adaptation to specific application requirements. These range from 6 to 330 gf, depending on the specific variant.
Different actuator options are available, including plunger, flat lever, and cranked lever. This makes the VMN series micro switch ideal for use in household appliances, power tools, production machines, and air conditioning systems. The wide range of variants allows for optimal customization of the switch to meet specific application needs.
Technical Data:
Application possibilities:
- Household appliances
- Power tools
- Production machines
- Air conditioning systems
Mounting:
- 2 screws M3
Contact:
- 1 changeover contact
Maximum switching capacity (depending on variant):
- AC 250 V, up to 16 A
Connection:
- Solder lugs
- Flat connectors (6.3 mm)
Actuator:
- Plunger
- Flat lever (27 mm)
- Cranked lever (24 mm)
Actuation force (depending on variant):
- B: 6 - 18 gf
- D: 13 - 45 gf
- N: 25 - 75 gf
- L: 30 - 110 gf
- S: 49 - 170 gf
- H: 70 - 230 gf
- Specify H: 120 - 330 gf
Dimensions (base element):
- Width: 28 mm
- Height: 16 mm
- Depth: 10.3 mm
Available Variants:
- Order number: VMN-10S-00A0Z (Plunger, solder lugs) – Item number: 923300
- Order number: VMN-10S-02A0Z (Flat lever 27 mm, solder lugs) – Item number: 923320
- Order number: VMN-10S-04C0Z (Cranked lever 24 mm, flat connectors) – Item number: 923342
Type: VMN-10S-02A0Z
The item price shown refers to 1000 pieces Zander Aachen 923320
Questions & answers
What is the delivery time of Zander Aachen 923320 VMN-10S-02A0Z, micro switch?
The article Zander Aachen 923320 VMN-10S-02A0Z, micro switch is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zander Aachen 923320 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zander Aachen 923320 VMN-10S-02A0Z, micro switch always at the best possible price. We can give you a discount of 2% on Zander Aachen 923320 VMN-10S-02A0Z, micro switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Zander Aachen 923320 VMN-10S-02A0Z, micro switch is offered by us in a sales unit of 1000 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
