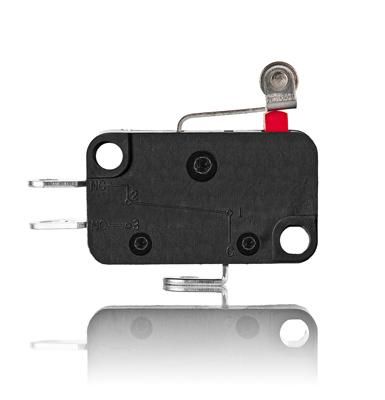

Zander Aachen 923300 VMN-10S-00A0Z, micro switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 1000 pieces | |
| Lieske Part No.: | 445305 |
|---|---|
| Mfg Part No: | 923300 |
| Weight: | 0.01 kg |
Product information for Zander Aachen 923300:
Product Description:
The VMN series consists of durable micro switches designed specifically for series production and available in numerous variants. These switches are ideal for use in household appliances, power tools, manufacturing equipment, and air conditioning systems. With high switching capacity and a variety of actuator options, they are highly versatile.
The VMN switches are easy to install with two M3 screws and offer connection options such as solder lugs or 6.3 mm quick-connect terminals. The actuation force conversion formula is: 1 gf = 0.980665 cN.
Key Features:
- Single-pole micro switch with SPDT contact
- Multiple connection options: solder lugs or 6.3 mm quick-connect terminals
- Various actuators: plunger, flat lever (27 mm), or offset lever (24 mm)
- Easy mounting with two M3 screws
- Compact dimensions: 28 x 16 x 10.3 mm (base unit)
- High switching capacity: Up to AC 250 V; 16 A (variant-dependent)
Technical Data:
- Applications: Household appliances, power tools, manufacturing equipment, air conditioning systems
- Mounting: 2 M3 screws
- Contact type: SPDT (Single Pole Double Throw)
- Max. switching capacity: AC 250 V; up to 16 A (variant-dependent)
- Connection: Solder lugs or 6.3 mm quick-connect terminals
- Actuator: Plunger, flat lever (27 mm), offset lever (24 mm)
- Actuation force: - B: 6-18 gf (variant-dependent)
- Dimensions: 28 x 16 x 10.3 mm (base unit)
- D: 13-45 gf (variant-dependent)
- N: 25-75 gf (variant-dependent)
- L: 30-110 gf (variant-dependent)
- S: 49-170 gf (variant-dependent)
- H: 70-230 gf (variant-dependent)
- Specify H: 120-330 gf (variant-dependent)
Variants and Order Numbers:
- VMN-10S-00A0Z: Plunger, solder lugs (Order No. 923300)
- VMN-10S-02A0Z: Flat lever 27 mm, solder lugs (Order No. 923320)
- VMN-10S-04C0Z: Offset lever 24 mm, quick-connect terminals (Order No. 923342)
Included Items:
- 1x VMN series micro switch (varies by model)
- Technical datasheet
Application Areas:
- Household appliances
- Power tools
- Manufacturing equipment
- Air conditioning systems
Type: VMN-10S-00A0Z
The item price shown refers to 1000 pieces Zander Aachen 923300
Questions & answers
What is the delivery time of Zander Aachen 923300 VMN-10S-00A0Z, micro switch?
The article Zander Aachen 923300 VMN-10S-00A0Z, micro switch is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zander Aachen 923300 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zander Aachen 923300 VMN-10S-00A0Z, micro switch always at the best possible price. We can give you a discount of 2% on Zander Aachen 923300 VMN-10S-00A0Z, micro switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Zander Aachen 923300 VMN-10S-00A0Z, micro switch is offered by us in a sales unit of 1000 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
