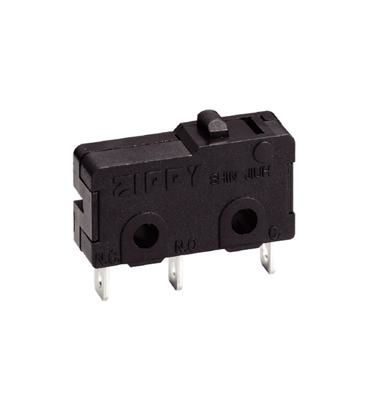

Zander Aachen 910134 SM-05S-03PZ, micro switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 1000 pieces | |
| Lieske Part No.: | 444978 |
|---|---|
| Mfg Part No: | 910134 |
| Weight: | 0.003 kg |
Product information for Zander Aachen 910134:
Product Description:
The SM series features single-pole micro switches with a wide range of connection and actuator options. These switches are ideal for use in household appliances, power tools, and air conditioning systems. Built for precision, the SM series offers reliable switching performance in a compact form factor with simple mounting via screws.
The SM series is available with various actuators, including plungers and flat levers, tailored to meet the specific needs of your application. Depending on the variant, actuation force ranges from 8 to 249 gf.
Key Features:
- Single-pole micro switch with SPDT contact
- Multiple connection options: solder lugs or solder pins (straight/angled)
- Various actuators: plunger or flat lever (23 mm)
- Easy mounting with two M2 screws
- Compact dimensions: 20 x 10 x 6.5 mm (base unit)
- High switching capacity: AC 250 V; 5 A
Technical Data:
- Applications: Household appliances, power tools, air conditioning systems
- Mounting: 2 M2 screws
- Contact type: SPDT (Single Pole Double Throw)
- Max. switching capacity: AC 250 V; 5 A
- Connection: Solder lugs or solder pins
- Actuator: Plunger or flat lever (23 mm)
- Actuation force: - H: 18 - 249 gf (variant-dependent)
- Dimensions: 20 x 10 x 6.5 mm (base unit)
- Actuation force conversion: 1 gf = 0.980665 cN
- S: 12 - 146 gf (variant-dependent)
- L: 8 - 104 gf (variant-dependent)
Variants and Order Numbers:
- SM-05S-00AZ: Plunger, solder lugs (Order No. 910100)
- SM-05S-00CZ: Plunger, solder pins right (Order No. 910102)
- SM-05S-00DZ: Plunger, solder pins left (Order No. 910103)
- SM-05S-03PZ: Flat lever 23 mm, straight solder pins (Order No. 910134)
Included Items:
- 1x SM series micro switch (varies by model)
- Technical datasheet
Application Areas:
- Household appliances
- Power tools
- Air conditioning systems
Type: SM-05S-03PZ
The item price shown refers to 1000 pieces Zander Aachen 910134
