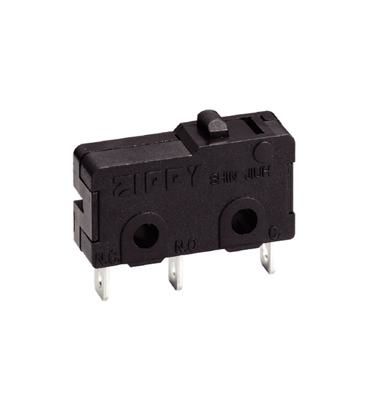

Zander Aachen 910100 SM-05S-00AZ, micro switch
|
on request |
|
|
( on request incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 1200 pieces | |
| Lieske Part No.: | 444800 |
|---|---|
| Mfg Part No: | 910100 |
| Weight: | 0.003 kg |
Product information for Zander Aachen 910100:
Product Description:
The single-pole micro switch of the SM series offers versatile connection options and is ideal for use in household appliances, power tools, and air conditioning systems. With compact dimensions of 20 x 10 x 6.5 mm (base element), it is also suitable for confined installation spaces. Connection options include solder lugs as well as straight and angled solder pins, ensuring maximum flexibility during installation.
Thanks to its robust design and the possibility of mounting it with two M2 screws, the micro switch can be securely installed. The switch features a changeover contact (1-pole) and provides a maximum switching capacity of 250 V AC at 5 A. Different actuation forces (H, S, L) allow for adjustment to specific requirements, ranging from 8 to 249 gf depending on the variant. Actuation is possible via either a plunger or a 23 mm flat lever.
The SM series offers numerous variants that differ in terms of connection types and actuators, allowing the switch to be optimally adapted to different applications.
Technical Data:
Application possibilities:
- Household appliances
- Power tools
- Air conditioning systems
Mounting:
- 2 screws M2
Contact:
- 1 changeover contact
Maximum switching capacity:
- AC 250 V, 5 A
Connection:
- Solder lugs
- Solder pins (straight or angled)
Actuator:
- Plunger
- Flat lever (23 mm)
Actuation force (depending on variant):
- H: 18 - 249 gf
- S: 12 - 146 gf
- L: 8 - 104 gf
Dimensions (base element):
- Width: 20 mm
- Height: 10 mm
- Depth: 6.5 mm
Available Variants:
- Order number: SM-05S-00AZ (Plunger, solder lugs) – Item number: 910100
- Order number: SM-05S-00CZ (Plunger, right-side solder pins) – Item number: 910102
- Order number: SM-05S-00DZ (Plunger, left-side solder pins) – Item number: 910103
- Order number: SM-05S-03PZ (Flat lever 23 mm, straight solder pins) – Item number: 910134
Type: SM-05S-00AZ
The item price shown refers to 1200 pieces Zander Aachen 910100
