Zander Aachen 585740 EPC48 48 output 230V 50-60Hz, electronic. Program switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 443295 |
|---|---|
| Mfg Part No: | 585740 |
| Weight: | 3 kg |
Product information for Zander Aachen 585740:

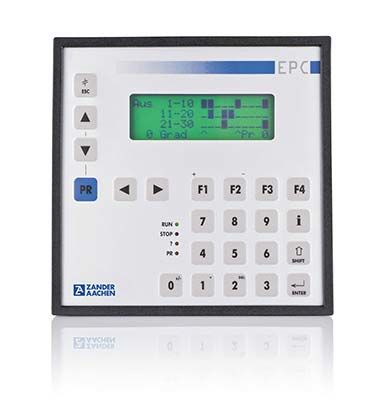

The EPC48 is a state-of-the-art cam controller equipped with a robust 16-bit processor system. Designed for controlling motion sequences in processing, packaging, or gluing machines, it integrates control, operator guidance, and text display into one compact device, ensuring maximum flexibility and efficiency in industrial applications.
Key Features:
• Controller and operator terminal in one device• Encoder input for speeds up to 1000 RPM
• Automatic dwell time compensation for precise control
• Real-time multitasking operating system for maximum speed
• Program optimization during active operation
• Integrated programming unit with multi-language plain text display
• Access to up to 32 programs simultaneously
• Easy integration with PC, PLC, and other machine controllers
Innovative Functions:
- Dwell Time Compensation: Automatically compensates for mechanical delays during operation, adapting to machine speed. Different dwell times for activation and deactivation points can be defined.
- Flexible Programming: Intuitive plain text dialogue simplifies programming. Programs can be copied and adjusted segment by segment.
- Plain Text Display: Real-time display of machine speed, position, angle, and switch states, configurable in various units such as mm, m, or inches.
- High Reliability: Multitasking operating system eliminates fixed cycle times, ensuring optimal performance even with frequent switching operations.
- Communication Interfaces: Serial interface and digital I/Os enable seamless integration with PLCs or machine computers.
Technical Specifications:
- Programs: Store up to 32 complete programs
- Applications: Packaging machines, processing systems, gluing units, and more
- Enclosure: Compact panel-mount housing with splash-proof keypad (IP65)
- Modularity: European card design allows easy upgrades and replacements.
EPRPRO Integration:
The EPC48 is optionally programmable using EPRPRO, the Windows®-based software. It provides a user-friendly environment for creating, simulating, and transferring control programs.EPC48 – Your Advantage:
Benefit from over 40 years of expertise with ZANDER cam controllers. The EPC48 makes your machines smarter, faster, and more user-friendly.
Contact Us!
Do you have special requirements or unique needs? Reach out to us – we also provide customized solutions tailored to your applications.
Type: EPC48 48 Ausg. 230V 50-60Hz
