Zander Aachen 585701 EPR48 48 output 115V 50-60Hz, electronic. Program switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 442938 |
|---|---|
| Mfg Part No: | 585701 |
| Weight: | 3 kg |
Product information for Zander Aachen 585701:
Description:

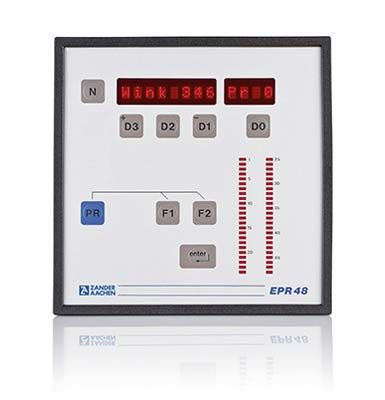

The EPR48 is a high-performance programmable cam controller equipped with a 16-bit processor system. It enables fully automated control of motion sequences in processing machines and systems. By connecting a rotary or linear encoder, the EPR48 captures the machine position in real-time and activates the programmed outputs accordingly.Features:
- Protection Class: Water and dust protection (IP65)
- Encoder Input: Supports up to 1000 RPM
- Dead-Time Compensation: Automatic in three operating modes
- Programming: Workflow-based with plain text guidance
- Program Capacity: Access up to 32 programs simultaneously
- Display: Real-time plain text display of process data
- Interfaces: Compatible with PC, PLC, and production data systems
- All-in-One Solution: Integrated operator terminal and controller
Functions:
- User-Friendly Programming: - Plain text dialogue for intuitive operation
- Powerful Operating System: - Real-time multitasking without fixed cycles
- Data Display and Output: - Real-time display of machine speed, position, and angle
- Correction Functions: - Static angle and switch point corrections during operation
- Dead-Time Compensation: - Automatically adjusts to machine movement
- Outputs: 48 digital switching outputs
- Memory: Stores up to 32 programs for easy retrieval
- Interfaces: Serial communication (RS232, optional RS485/RS422)
- Programming Language: Workflow-based, multilingual support
- 9 function keys without complex dual assignments
- Rapid switching without speed loss
- Configurable units (e.g., mm, m, inch)
- Output of live process data via serial interface
- Individual dead-time settings for on/off points in milliseconds
Technical Specifications:
Installation and Design:
- Compact panel-mounted housing
- Robust, dirt-resistant membrane keypad
- Modular design with Euro cards for easy component replacement
Applications:
Perfect for packaging machines, manufacturing systems, and high-precision processing equipment requiring fast, flexible, and reliable control systems.Package Includes:
- EPR48 Programmable Cam Controller
- User manual
- Optional: Accessories for data interfaces and program storage
*Note: Optimize your machine processes with the EPR48 for improved efficiency and precision!*
Type: EPR48 48 Ausg. 115V 50-60Hz
Questions & answers
What is the delivery time of Zander Aachen 585701 EPR48 48 output 115V 50-60Hz, electronic. Program switch?
The article Zander Aachen 585701 EPR48 48 output 115V 50-60Hz, electronic. Program switch is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Zander Aachen 585701 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Zander Aachen 585701 EPR48 48 output 115V 50-60Hz, electronic. Program switch always at the best possible price. We can give you a discount of 2% on Zander Aachen 585701 EPR48 48 output 115V 50-60Hz, electronic. Program switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
