Zander Aachen 585700 EPR48 48 output 230V 50-60Hz, electronic. Program switch
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 442925 |
|---|---|
| Mfg Part No: | 585700 |
| Weight: | 3 kg |
Product information for Zander Aachen 585700:
Description:

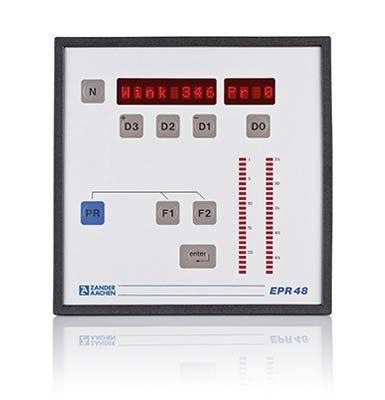

The EPR48 is a high-performance programmable cam controller equipped with a powerful 16-bit processor system. Designed for fully electronic control of motion sequences in processing machines and systems, it offers extensive programming and optimization capabilities.Features:
- Protection Class: Front panel protected against water and dust (IP65)
- Encoder Input: Supports up to 1000 RPM
- Dead-Time Compensation: Fully automatic in three modes
- Real-Time Optimization: Program modifications and switch point corrections during operation
- Program Memory: Access up to 32 programs simultaneously
- Integrated Control & Operation: Includes operator terminal with plain text display
- Interfaces: Compatible with PC, PLC, and production data acquisition systems
- Programmability: Workflow-based programming, multilingual support
Functionalities:
- User-Friendly Programming: - Simple and intuitive programming through plain text dialogs
- Real-Time Operation: - Real-time multitasking operating system without fixed cycles
- Process Data Display: - Displays machine speed, position, and angle on a plain text screen
- Switching Points: - Static angle and switch point corrections for precise control
- Dead-Time Compensation: - Automatic adjustment for mechanical delays of actuators
- Outputs: 48 digital switching outputs
- Program Storage: Up to 32 complete programs can be saved and retrieved
- Communication: Serial interface for PC, PLC, and machine integration
- 9 keys with clear functions, no complex dual assignments
- Fast and flexible switching for every output
- Configurable display units (e.g., m, mm, inch)
- Separate dead-time values for on/off points, input in milliseconds
Technical Specifications:
Installation & Design:
- Compact panel-mounted housing with modular electronics on Euro cards
- Robust, dirt-resistant, and waterproof membrane keypad
- Replaceable components for easy maintenance
Applications:
Perfect for packaging machines, manufacturing systems, and high-precision processing machines requiring speed, flexibility, and user-friendliness.Package Includes:
- EPR48 Programmable Cam Controller
- Installation and user manual
- Optional: Accessories for interface integration and process data output
*Note: Boost your system performance and control accuracy with the EPR48!
Type: EPR48 48 Ausg. 230V 50-60Hz
