Zander Aachen 585495 Cable 10m EPR-WG2/WG3, with 2 plugs
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 442807 |
|---|---|
| Mfg Part No: | 585495 |
| Weight: | 0.85 kg |
Product information for Zander Aachen 585495:
Description:

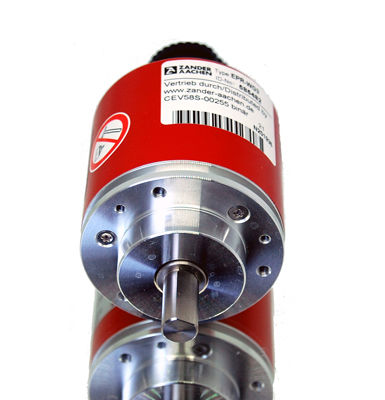

The EPR-WG is a precise and robust single-turn encoder, specifically designed for use with EPR16, EPR48, EPC16, and EPC48 programmable cam controllers. Its optoelectronic scanning system ensures contactless, wear-free operation and delivers precise positioning data.Features:
- Resolution: 360 or 1000 steps per revolution
- Codes: Binary or Gray-Excess-76-Code
- Outputs: Push-pull, short-circuit proof, and reverse-polarity protected
- Compatibility: Direct connection to EPR16, EPR48, EPC16, EPC48
- Rotation Direction: Reversible*
- Durability: Mechanically robust, suitable for high-speed operations
Technical Details:
- Scanning Method: Optoelectronic, contactless, and durable
- Signal Output: Short-circuit proof and reverse-polarity protected push-pull outputs
- Mechanics: Ball-bearing shaft for high-speed performance
Installation Notes:
- Mount with 3 M4 screws on the front face
- Connect the shaft using a suitable membrane coupling (see accessories)
Precautions to Avoid Damage:
- Prevent electrostatic discharge when handling electronics
- Avoid applying excessive force on the shaft
- Protect from impacts, chemicals, extreme temperatures, and vibrations
Cable and Connection Options:
- Available with axial or radial connectors
- Matching shielded cables with connectors on both ends are available in various lengths (refer to part numbers).
Rotation Direction Specifics:
- From 2020 onward, rotation direction cannot be changed on the device itself.
- Solution: Use the adapter cable (Part No. 585738) to reverse the rotation direction.
Applications:
The EPR-WG is ideal for industrial applications such as:- Packaging and labeling machines
- Machine tools
- Production and testing automation
- Cleaning systems
- Textile machines
Package Contents:
- Encoder EPR-WG
- User manual
- Optional accessories like cables and adapters are available.
*Note: Additional technical details and accessories are available upon request.
Type: Kabel 10m EPR-WG2/WG3
