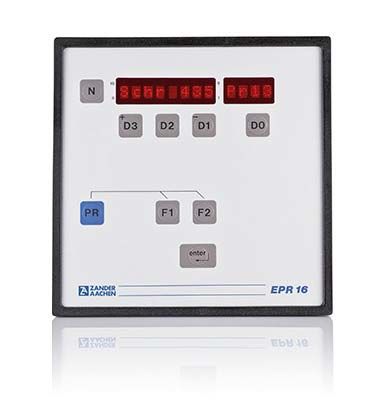

Zander Aachen 585420 EPR16S 230V 50-60Hz, 16 output 100mA

Description:

The EPR16S is a freely programmable cam controller combining the benefits of a programmable logic controller (PLC) with exceptional ease of use. Equipped with a powerful 16-bit CMOS processor, the EPR16S handles complex control tasks effortlessly. Its intuitive interface eliminates the need for programming expertise, making it ideal for diverse industrial applications.

Features:

• Flexibility and User-Friendly Operation:
- Create, delete, and document switching states
- Store and access up to 20 programs
- Copy entire programs or specific segments
- Flexible program jumps
- Adjustable switch times from 1 ms to 99.9 minutes

• Enhanced Display and Communication Options:
- Real-time switchable plain-text display for step or speed monitoring
- Serial interface for data transfer to PC or PLC
- Support for conversion factors for display in units like mm, degrees, or inches
- Real-time process data output (e.g., machine position or speed)

• Hardware Specifications:
- 16 outputs, 8 inputs, external clock input, and reset input
- Robust panel-mount enclosure with shielding and water-resistant tactile membrane keyboard


Safety and Additional Functions:

• Watch-Dog output for increased operational safety
• Built-in software safety mechanisms
• Comprehensive PC software (EPRPRO for Windows®) for graphical programming, documentation, and data management

Applications:

The EPR16S is ideal for:

• Complex Time-Controlled Processes:
- Machine tools, bakery equipment, electroplating systems, painting equipment, cleaning machines, car washes, wood processing machines

• Angle, Distance, and Counting Controls:
- Feeding systems, winding machines, cutting machines, production lines, packaging equipment

• Synchronized Sequence Controls:
- External clock input for precise real-time synchronization


Simple Programming:

• Guided plain-text dialogue for quick and intuitive operation
• No external programming tools or knowledge of programming languages required
• Switching states and input/output linkages are defined directly from flowcharts

Technical Specifications:

• Processor: 16-bit CMOS system
• Inputs/Outputs: 16 outputs, 8 inputs, 1 clock input, 1 reset input
• Switch Times: 1 ms to 99.9 minutes
• Interfaces: Serial (V24, RS485, RS422, or 20mA optional)
• Housing: Shielded panel-mounted enclosure with tactile membrane keyboard
• Software: EPRPRO for Windows® for advanced programming

Included Items:

• EPR16S cam controller
• User manual
• Access to optional EPRPRO PC software

Note:

Errors and technical changes reserved.
Type: EPR16S 230V 50-60Hz
