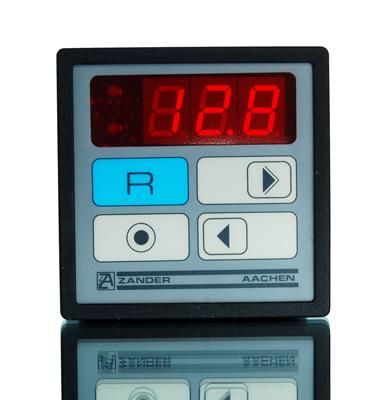

Zander Aachen 523002 ENS90 AC/DC 24V, digital timer switch

The ENS90 programmable digital timer relay combines robust mechanics with modern industrial electronics. Featuring a tightly sealed front panel and an integrated membrane keypad, it is fully protected against dirt and splashes (IP65 front protection). This versatile device is perfect for applications such as bakery machines, machine tools, and production automation. Its simple programmability makes it suitable for nearly all use cases.

Features:

• Robust Design:
-(IP65 front protection against dirt and splashes

• Versatile Time Ranges:
- 6 programmable time ranges from 0.01 seconds to 99.9 hours

• Flexible and Programmable:
- All common timing functions are programmable

• User-Friendly Operation:
- Integrated membrane keypad for easy time setting
- Large, easy-to-read 13 mm LED display

• Additional Features:
- Built-in sensor power supply
- Target contact indication via LED


Functionality:

• Timing Sequence:
- The timing sequence starts with the programmed value and ends at zero, activating the target contact.
- The following actions can be performed during timing:
- Pause: Via the START input (1-3)
- Reset: Via the reset button or RESET input (2-3)
- Set new start values

• Reset Priority:
- The reset signal takes precedence over the start signal.
- When the START input (1-3) is closed (e.g., with a wire bridge), timing begins immediately upon applying mains power.

• Relay Contacts:
- Instant Contact (23-24): Activates with the start signal
- Target Contact (15-16-18): Activates after the programmed time elapses

• LED Indicators:
- The lower LED indicates the closed target contact.
- The preset value can be displayed during timing by pressing the memory button.


Mounting and Installation:

• Protection:
-(IP65 front protection for harsh industrial environments

• Connections:
- Reset input (2-3)
- Start signal input (1-3)


Safety Instructions:

• Installation and commissioning must only be performed by qualified personnel.
• Compliance with all relevant safety standards and regulations is required.

Applications:

• Bakery Machines: Perfect for use in humid and dirty environments
• Machine Tools: High precision and reliability in control tasks
• Production Automation: Flexible and adaptable for complex processes

Included Items:

• ENS90 Digital Timer Relay

Note: Errors and technical changes reserved.
Type: ENS90 AC/DC 24V
