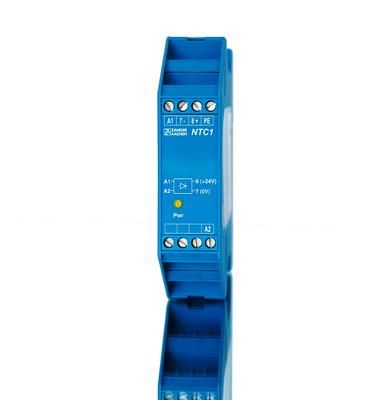

Zander Aachen 471250 NTC1 AC 85-264V, out: DC 24V, 450mA

The compact power supply NTC1 combines an ultra-slim design with high output performance, making it the ideal solution for confined installation spaces, such as power supplies for control systems. It is short-circuit-proof, features over-temperature protection, and includes an integrated, TÜV- and UL-certified AC/DC converter. The power supply is highly robust and stable, making it suitable for diverse industrial applications.

Features:

• Wide input voltage range:
- AC 85-264V
- DC 110-260V

• Output:
- DC 24V
- 450 mA continuous load
- 550 mA peak load

• Key Features:
- Short-circuit-proof
- Over-temperature protection
- Integrated TÜV- and UL-certified AC/DC converter

• Form Factor:
- Ultra-compact: Only 22.5 mm wide


Functionality:

• Voltage Ranges:
- The wide input voltage range (AC 85-264V or DC 110-260V) allows use in all common AC and DC networks.

• Galvanic Isolation:
- Input and output voltages are galvanically isolated.

• Overload and Over-Temperature Protection:
- In case of overload, the output shuts down and automatically restores operation after the overload is removed.
- Thermal overload also triggers shutdown with automatic recovery.

• Overvoltage Protection:
- Input is protected against overvoltage by varistor protection.


Mounting and Installation:

• Protection:
- Suitable for installation in control cabinets with at least IP54 protection (according to EN 60204-1).

• Mounting:
- Mounts on a 35 mm DIN rail according to DIN EN 60715 TH35.


Safety Instructions:

• Installation and commissioning should only be carried out by qualified personnel.
• Proper installation ensures nearly indestructible operation.

Included Items:

• NTC1 compact power supply

Applications:

• Power supply in control systems
• Power supplies for devices in confined spaces
• Industrial applications requiring high reliability and stability

Type: NTC1 AC 85-264V
