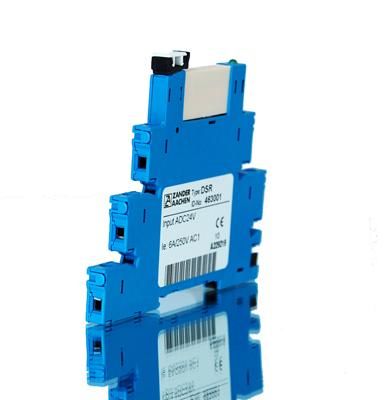

Zander Aachen 463001 DSR AC/DC 24V, relay interface cUL
|
on request |
|
| Delivery time on requestinfo_outline | |
| Sales unit: 5 pieces | |
| Lieske Part No.: | 439440 |
|---|---|
| Mfg Part No: | 463001 |
| Weight: | 0.05 kg |
Product information for Zander Aachen 463001:
The DSR is an ultra-slim relay module with a width of just 6.2 mm, featuring a pluggable relay. It is designed for use as a power interface with galvanic isolation between control and load circuits in machinery and equipment. The A1/A2 terminals of multiple adjacent modules can be easily connected using a comb bridge, allowing for efficient wiring. The module includes an LED indicator, reverse polarity protection, and input circuit protection. It is supplied with a labeling tag to simplify identification within the control cabinet.
Features:
- Ultra-slim design: Only 6.2 mm wide
- Pluggable relay: - AC250V / 6A capacity
- LED indicator for status monitoring
- Reverse polarity protection and input circuit protection
- Comb bridge compatibility for easy connection of multiple modules
Mounting and Installation:
- Protection: - Suitable for installation in control cabinets with at least IP54 protection (according to EN 60204-1)
- Mounting: - Mounts on a 35 mm DIN rail according to DIN EN 60715 TH35
- Connection: - Connect ADC24V input voltage to A1-A2
- Connect or modify the device only in a de-energized state.
- If the device does not function after commissioning, return it to the manufacturer unopened.
- Opening the device voids the warranty.
- Connect load circuit to 11-12-14
- Provide external contact protection:
- 6A slow-blow
- 8A fast-acting
- Wiring cross-section must not exceed 2.5 mm²
Safety Instructions:
Included Items:
- DSR relay module with pluggable relay
- Labeling tag
Applications:
- Control systems in machinery and equipment
- Isolation and control of control and load circuits
- Space-saving integration in industrial control cabinets
Type: DSR AC/DC 24V
The item price shown refers to 5 pieces Zander Aachen 463001
