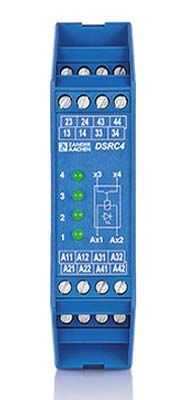

Zander Aachen 459031 DSRC4 DC 24V, 4-way relay interface
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 439383 |
|---|---|
| Mfg Part No: | 459031 |
| Weight: | 0.15 kg |
Product information for Zander Aachen 459031:
The DSRC4 is a compact power interface designed for galvanic isolation between control and load circuits in machinery and equipment. Featuring four independent relays within a single housing, the DSRC4 offers a space-saving solution, requiring significantly less room than individual components. Each of the four interfaces has its own LED indicator for status monitoring. With a total width of only 22.5 mm, each interface occupies just 5.6 mm of space.
Features:
- 4 relay interfaces in a compact housing
- Extremely space-efficient: 5.6 mm per interface (22.5 mm total width)
- LED indicator for each channel to monitor operational status
- Galvanic isolation between control and load circuits
- Designed for DC24V input voltage
Mounting and Installation:
- Protection: - Suitable for installation in control cabinets with at least IP54 protection (according to EN 60204-1)
- Mounting: - Mounts on a 35 mm DIN rail according to DIN EN 60715 TH35
- Connection: - Connect DC24V input voltage to A11-A12, A21-A22, A31-A32, and A41-A42
- Connect or modify the device only in a de-energized state.
- If the device does not function, return it to the manufacturer unopened.
- Opening the device voids the warranty.
- Connect load circuits to 13-14, 23-24, 33-34, and 43-44
- Provide external contact protection:
- 6A slow-blow
- 8A fast-acting
- Wiring cross-section must not exceed 2.5 mm²
Safety Instructions:
Included Items:
- DSRC4 relay interface
Applications:
- Control systems in machinery and equipment
- Isolation and control of multiple load circuits
- Space-saving integration in industrial control cabinets
Type: DSRC4 DC 24V
