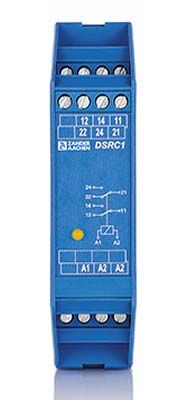

Zander Aachen 453011 DSRC1 AC/DC 24V, relay interface
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 439314 |
|---|---|
| Mfg Part No: | 453011 |
| Weight: | 0.15 kg |
Product information for Zander Aachen 453011:
The CDSRC1 is a high-performance interface designed for galvanic isolation between control and load circuits in machinery and equipment. Featuring a 2-pole relay output, LED indicator, and options for either ADC24V or AC230V input, it provides a reliable and efficient solution for use in control cabinets. Its compact 22.5 mm width simplifies installation on 35 mm DIN rails according to DIN EN 60715 TH35. The AC230V version includes an integrated isolation transformer, ensuring minimal power consumption.
Features:
- Compact dimensions: Only 22.5 mm wide
- High output switching capacity
- Galvanic isolation between control and load circuits
- LED indicator for operational monitoring
- Input voltage options: - ADC24V (Order No.: 453011)
- Minimal power consumption with AC230V due to integrated isolation transformer
- AC230V (Order No.: 453014)
Mounting and Installation:
- Protection: - Suitable for installation in control cabinets with at least IP54 protection (according to EN 60204-1).
- Mounting: - Mounts on a 35 mm DIN rail according to DIN EN 60715 TH35.
- Connection: - Connect input voltage to A1-A2 (ADC24V or AC230V, depending on model).
- Opening the device voids the warranty.
- If the device does not function, it must be returned to the manufacturer unopened.
- Connect load circuits to 11-12-14 and 21-22-24.
- Provide external contact protection:
- 6A slow-blow
- 8A fast-acting
- Wiring cross-section must not exceed 2.5 mm².
Safety Instructions:
Included Items:
- CDSRC1 interface (depending on selected voltage version)
Applications:
- Control systems for machinery and equipment
- Isolation of control and load circuits
- Use in industrial control cabinets
Type: DSRC1 AC/DC 24V
