Yeastar 5G CPE
Router, 4×4 MIMO 5G, WiFi5, LAN direct, indoor & outdoor

Highlights Powerful Qualcomm quad-core processor and 512MB RAM Supports 5G NSA/SA, 4G and 13 5G frequency bands for wide coverage 5G download speed of 2.5Gbps at peak Gigabit Ethernet ports for blazing fast Data transmissions 4x4 MIMO 5G cellular, omnidirectional antennas guarantee a better signal 2.4 GHz and 5 GHz dual-band Wi-Fi Resilience and uptime with link failover Secure transmission with VPN tunnels Reliable firewall for secure networking Flexible mounting options: table -, wall, pole or screw mount Suitable for indoor and outdoor use: slim cylinder design and IP67 protection Unleash the full speed of 5G Yeastar 5G CPE is a 5G connection hub that converts 5G signals into wired Ethernet or Wi-Fi. Fi converts. It is operated with a switch or router and connects companies with ultra-fast networks. Thanks to high signal quality, wide coverage and download speeds of up to 2.5Gbps, Yeastar 5G CPE can effectively deliver gigabit speeds. In addition, companies can easily take advantage of the advantages of 5G and use it in various scenarios. Technical information Processor Qualcomm Quad-core CPU, 716.8 MHz, ARM Cortex-A7
8 GB Flash Memory, 512 MB DDR3 RAM Cellular Applicable Network: 5G / 4G LTE
Network Mode : NSA/SA
8 Built-in Antennas Interface Ethernet: 2×10/100/1000 Mbps
SIM Card Slot: 1 (2FF) Wi-Fi Frequency Band: 2.4 GHz < 5 GHz
IEEE 802.11a/b/g/n/ac
WEP/WPA/WPA2 Authentication
WEP/TKIP/AES Encryption
Work as a Client or AP
4 Built-in Antennas Software Network Protocol: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2/v3, TCP, UDP, DHCP, RIPv1/ v2, OSPF, DDNS,
VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP Telnet, VLAN, SSH, etc.
VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Firewall: SPI, ACL, DMZ, Port Forwarding
AAA: Radius, Tacacs+, LDAP, Local Authentication
High Availability: VRBP, Link Failover Power 9-48 VDC, Surge Protection, Reverse Polarity Protection, 802.3af POE Physical Protection Level: IP67
Dimension: 105 x 110 x 188 mm
Dimension (with waterproof connector): 105 x 110 x 218 mm

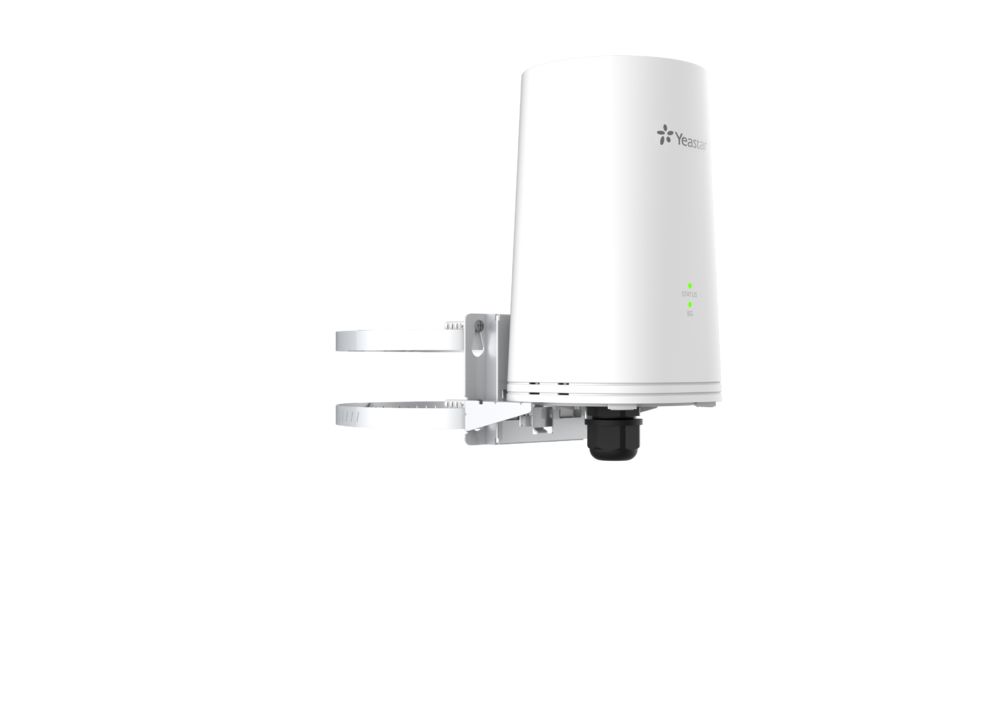

Wall Mounting, Pole Mounting, Desktop Mounting, and Screw Locking Environment Operating temperature: -40°C~70°C
Storage temperature: -40°C~85°C
Humidity: 0% ~ 95 % (non-condensing) under 25°C Management Via Web Management Portal, CLI, SMS, SNMP v1/v2/v3
Remote Management
