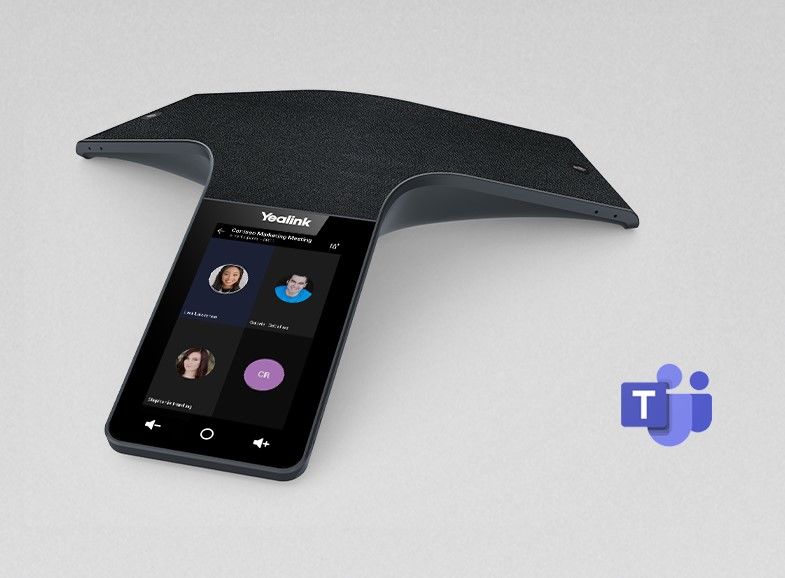

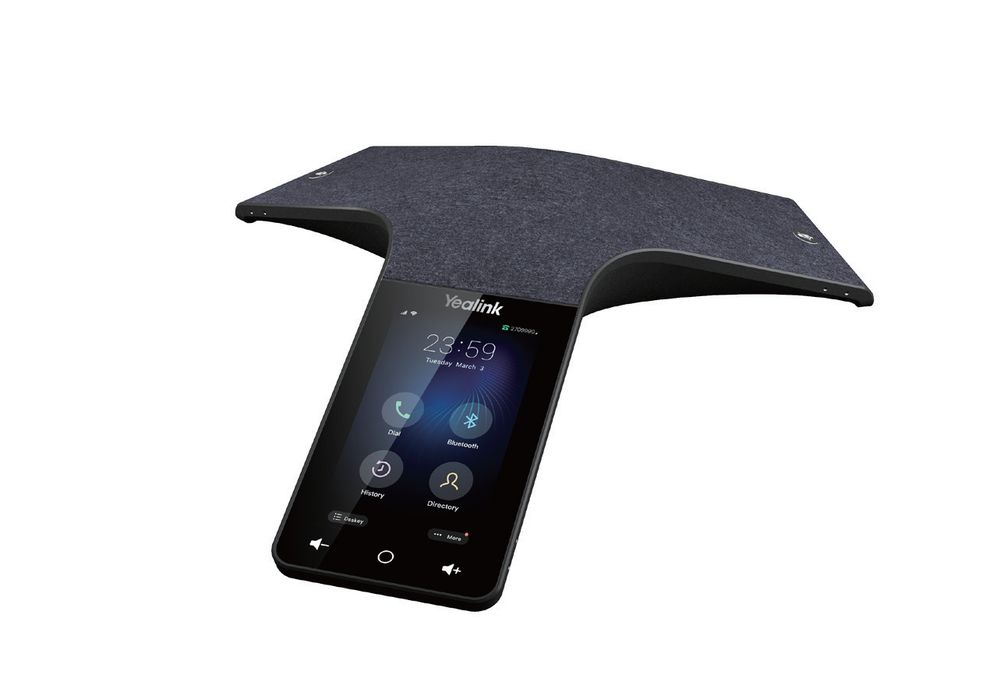

YEALINK MSFT - CP965 Teams Conference Phone content_copy

The Yealink CP965 Team Edition is the flagship conference phone and is fully compatible with Teams features, including Teams button calls, meeting features and Outlook calendar, providing a rich ecosystem. Experience a tap-to-join experience by syncing Outlook calendar for meeting appointments. The Teams UI is based on Android 11 and strikes a balance between simplicity and complexity.

Highlights

• 12.7 cm (5 inch) multi-touch screen with 720 × 1280 pixels
• Superior HD sound, full duplex audio technology
• Yealink Noise Proof technology
• Voice recording up to 6 meters and 360 degrees
• 13 integrated microphones (1x with noise Canceling)
• Powered via PoE (Power over Ethernet)
• Supports 10-way conference calls
• Built-in WiFi (2.4/5 GHz, 802.11a/b/g/n)
• Simple design, user-friendly interface
• Compatible with your mobile devices (such as computers, smartphones, CPN10 PSTN devices, etc.) via Bluetooth, USB Type-C or USB 2.0 for UC hybrid meetings

Product type

• audio conference system
• ear category (ElektroG): relevant, category 6: small IT devices - and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Mounting: table mounting

Telephone properties

• Number of microphones integrated: 13
• Microsoft Teams certified
• Telephone type: SIP
• Number of microphones optional: 2

Connections

• USB, USB -C
• Number of LAN ports: 1

Display

• Display diagonal inches: 5 \dlash- Display diagonal cm: 12.7 cm
• Display technology: LCD
• Touch display
• Display type: Color
• Display lighting

Operating system

• Operating system version at market launch: Android

Power supply

• Network

Data transfer

• Bluetooth
• WLAN
• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• WLAN frequency band: Dual band

Basic properties

• Color: Black
• Height: 322 mm
• Length/Depth: 62 mm
• Width: 328 mm

Scope of delivery

• Yealink CP965 Teams

Call management
Do not disturb function
Features
Product type	IP conference phone
Recommended room size	Large room
Control type	Touch
Product colour	Black
Display type	LCD
Display diagonal	12.7 cm (5")
Display resolution	720 x 1280 pixels
Voice codecs	AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1C, G.723, G.726, G.729, G.729A, OPUS, PCMA, PLC, VAD, iLBC
Microphone direction type	Omnidirectional
Number of microphone arrays	1
Frequency range	100 - 20000 Hz
Sound pressure level	94 dB
Microphone pick-up range	6 m
Conference call ways quantity	10
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet LAN data rates	10,100 Mbit/s
Security algorithms	256-bit AES, HTTPS, MD5, WPA2, WPA3
Phonebook capacity	1000 entries
Cable lock slot type	Kensington
Speaker power	5 W
Speaker diameter	5.6 cm
Compatible products	Microsoft Teams
Certification	CE, FCC, RoHS, REACH, ISO 9001, CCC
Built-in display
Touchscreen
Audio system full duplex
Echo cancellation
Noise reduction
Microphone mute
Wi-Fi
Bluetooth
Power over Ethernet (PoE)
Quality of Service (QoS) support
Conference call
Call forwarding
Call hold
Call waiting
Call blocking
Call transfer
Call history
Call return
Cable lock slot
Built-in speaker(s)
Logistics data
Products per master (outer) case	5 pc(s)
Master (outer) case gross weight	9.02 kg
Master (outer) case length	552 mm
Master (outer) case width	392 mm
Master (outer) case height	410 mm
Master (outer) case net weight	7.96 kg
Operational conditions
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Number of screws included	5 pc(s)
Screws included
Screwdriver included
Ethernet cable
Quick installation guide
Ports & interfaces
RJ-45 ports quantity	1
USB version	2.0
USB connector type	USB Type-A, USB Type-C
USB ports quantity	2
USB port
Power
Power consumption (max)	14 W
Power consumption (Power over Ethernet (PoE))	20 W
Weight & dimensions
Width	328 mm
Depth	322 mm
Height	62 mm
Package width	384 mm
Package depth	398 mm
Package height	105 mm

---
