Walther-Werke WAV0271R1
Walther connection distributor 138kVA
|
17.331,93 EUR |
|
|
( 20.625,00 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1779293 |
|---|---|
| Mfg Part No: | WAV0271R1 |
| UPC/EAN: | 4015609067985 |
| Weight: | 0.12 kg |
Product information for Walther-Werke WAV0271R1:
Connected load: 138kVA
according to IEC61439-4
and DIN/VDE 43868/1
Housing (H42) made of electrolytically galvanized sheet steel
with heavy metal-free plastic coating
Color: RAL 2004 -pure orange-
with double door and 3-point bar lock
with rotary knob and device for padlock
with crane eyes
including hot-dip galvanized base frame with eyelets for ground nails
Installations up to and including RCD circuit breaker in insulating housing
Protection class: IP 44
Measuring device Protection class: IP 44

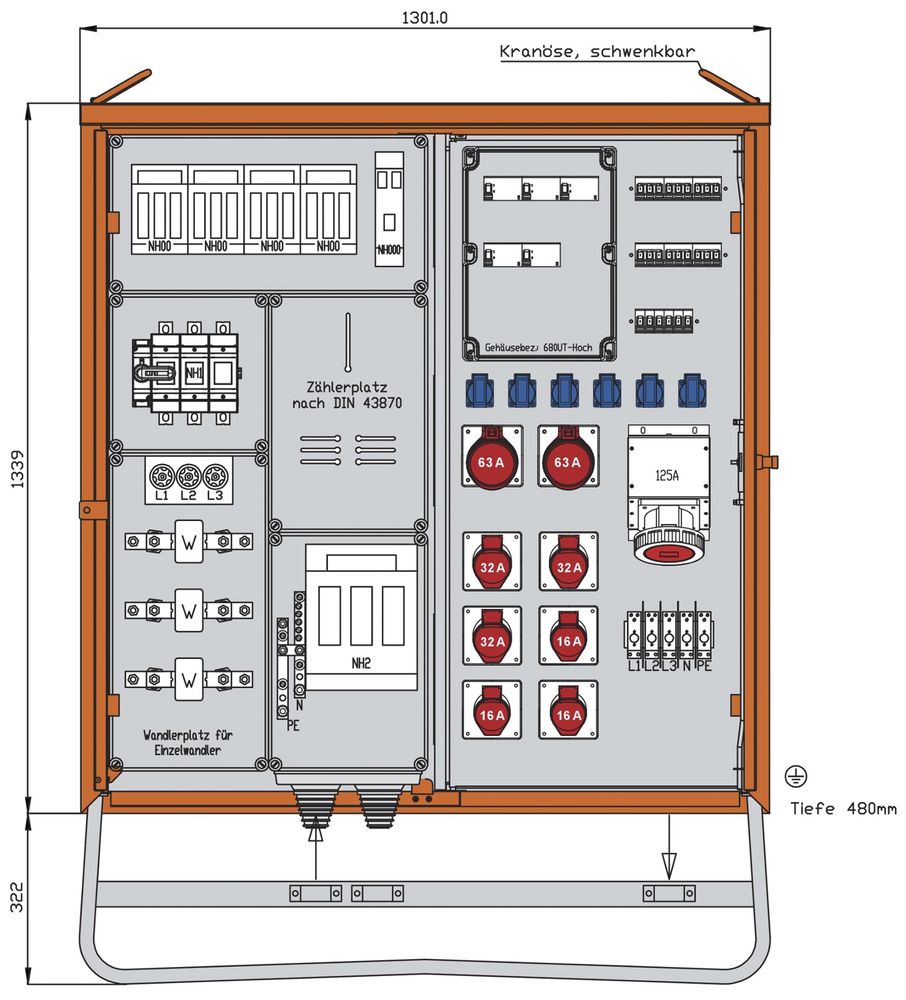

Size approx.: 1339 x 1301 x 480mm / HBT
+ base frame height approx.: 322mm
Connection:
1 NH2 fuse switch disconnector 315A
with bolt connection M10
Measurement:
1 voltage path fuse 3P 6A -DIAZED-
1 DS meter space without meter according to DIN 43870/2
1 transformer support device
with Cu rails and ISO supports
pre-wired for individual transformers
Output / protection:
1 NH1 load-break switch with fuses 200A
1 RCD circuit breaker 4P 125A/500mA -A-
with NH00 fuse switch disconnector 100A
1 CEE mounting box 125A 5P 400V 6h
without backup fuse -directly from RCD-
1 output terminal 5 x 16-70qmm
without backup fuse -directly from RCD-
2 RCD circuit breakers 4P 63A/300mA -B-
each with 1 NH00 fuse switch disconnector 63A
2 CEE mounting boxes 63A 5P 400V 6h
without backup fuse -directly from RCD-
1 RCD circuit breaker 4P 63A/30mA -B-
with NH00 fuse switch disconnector 63A
3 CEE wall sockets 32A 5P 400V 6h
each with 1 circuit breaker (MCB) 3P 32A -C-
3 CEE wall sockets 16A 5P 400V 6h
each with 1 circuit breaker (MCB) 3P 16A -C-
1 RCD circuit breaker 4P 40A/30mA -A-
with NH000 fuse switch disconnector 32A
6 earthed sockets 16A 2P 230V
each with 1 circuit breaker (MCB) 1P 16A -C-
Type: WAV0271R1
