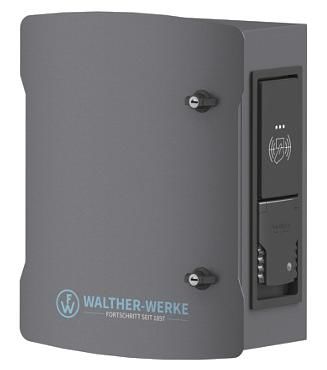

Walther-Werke 98600200 Walther Wallbox smartEVO 11 with 1 charging socket max. 11kW and PLC ISO 15118
|
2.479,50 EUR |
|||||||||||
|
( 2.950,61 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1868000 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 98600200 | ||||||||||
| UPC/EAN: | 4015609142392 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Walther-Werke 98600200:
Features:
Charging according to Mode 3 in accordance with IEC 61851
Plugs according to IEC 62196
1x charging socket type 2 (Mode 3)
Charging capacity up to 11kW
3 status LEDs in the side panel to display
the current status of the charging point
Authentication via side-mounted RFID panel
Powerline Communication (PLC) in accordance with ISO 15118
enables plug & charge and bidirectional communication
with the vehicle.
Connection to energy management systems (EMS)
EEBUS communication protocol
Connection to SMA communication protocol and TQ energy management
Integrated web server
Update firmware version as well as control/maintenance
via remote access.
Ethernet interface including AMJ module for connection to permanently installed data cable
Smart grid capability through OCPP 1.5 & 1.6 (JSON & SOAP)
Local dynamic load management (DLM)
including unbalanced load detection (phase-accurate control)
for efficient use of the available charging power
with up to 250 charging points
Assignment of master and slave charging points
possible via the configuration interface
Bidirectional energy meter (MID-certified)
Permanent PE monitoring
6mA DC residual current monitoring
Integrated residual current circuit breaker, circuit breaker
Integrated 2-stage temperature monitoring.
Robust and weatherproof housing
Galvanized powder-coated sheet steel housing
in iron mica grey (DB703)
Lockable door with integrated design plate
and Walther-Werke lettering
Easy installation thanks to 3-point wall mounting
Max. connection of the supply line for NYY-J 1x5x10mm²
Accessories included
2 RFID cards Mifare Classic
2 keys
1x AMJ module
Safety instructions
Circuit diagram (all-pole)
Routine test certificate
Functional test checklist
Optionally available:
Stele
one-sided version: 98900026
two-sided version: 98900027
Ground piece: E8ES
Type: 98600200
