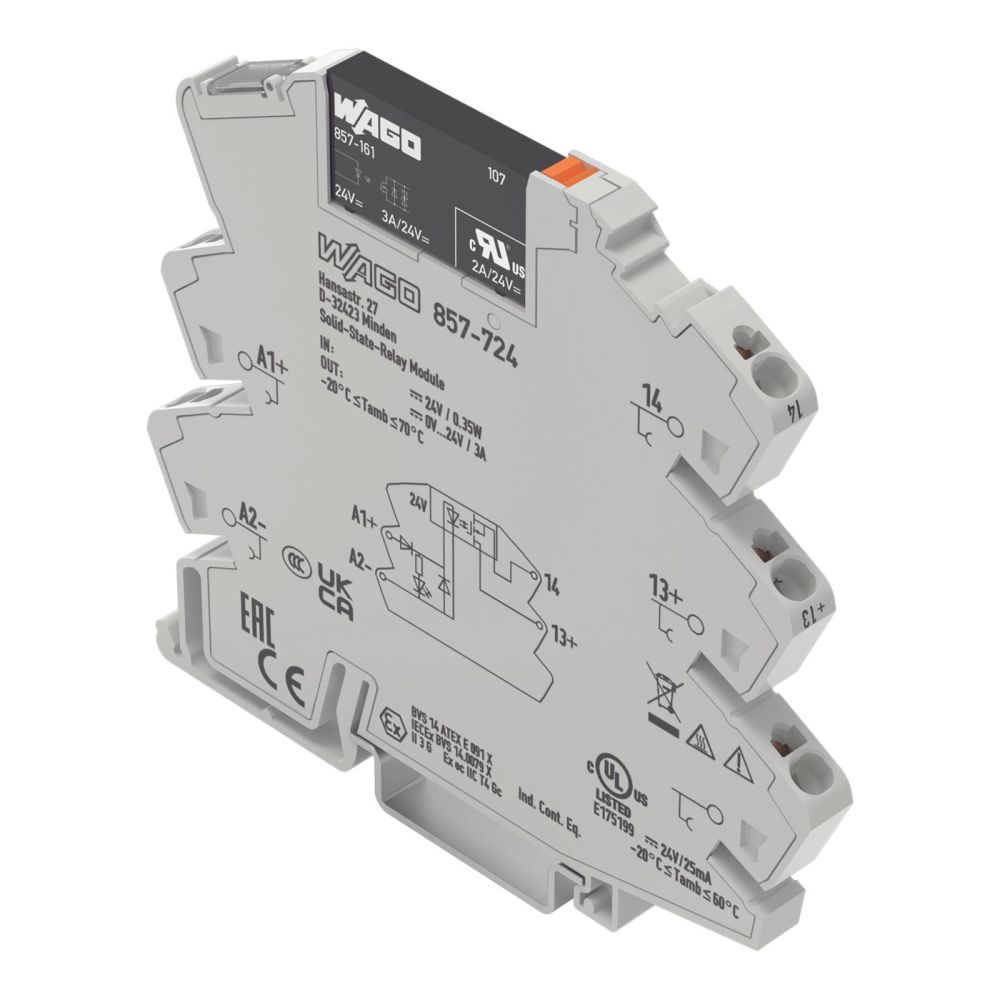

WAGO 857-724 JUMPFLEX socket with Solid-State-Relay input DC 24 V
|
41,12 EUR 41,36 EUR |
|||||||||||
|
( 48,93 EUR incl. VAT ) ≈ £34.42 | ≈ $45.19 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 919075 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 857-724 | ||||||||||
| UPC/EAN: | 4045454835552 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | 857-724 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for WAGO 857-724:
Applications
The 857-724 is particularly suitable for applications in automation technology, such as in manufacturing industry, packaging technology, or building automation. It is used to transmit signals from control devices (e.g. PLCs) to electrical loads such as motors, heaters, or lighting units. The use of a Solid-State Relay offers advantages in frequent switching operations, as no mechanical wear occurs. The output voltage is in the range of DC 0 V to 24 V, enabling the switching of loads with the same voltage rating.
Functions and Equipment in Detail
The module features an integrated Solid-State switch functioning as an electronic switch. Unlike mechanical relays, it operates without moving parts, increasing service life and improving switching speed. The switching capacity is up to 2 A at a voltage of DC 24 V. The output voltage is thus limited to the range of 0 V to 24 V, suitable for controlling loads within the same voltage range. The housing colour is grey, typical for industrial components, providing good visibility in enclosures.
Technology Explained Simply
A Solid-State Relay (SSR) operates based on semiconductor components, such as thyristors or transistors, which electronically control current flow. Unlike mechanical relays that switch via movable contacts, switching here occurs contactlessly. This avoids spark generation, mechanical wear, and allows for higher switching frequency. The input side of the module is designed for an operating voltage of DC 24 V, which is very common in industrial automation. The output side transmits voltage in the range of 0 V to 24 V, with a maximum current of 2 A. Switching is thus galvanically isolated, ensuring high safety and immunity to interference.
Compatibility and Accessories
The 857-724 is part of the JUMPFLEX® system from WAGO and can be combined with other modules of this system. Suitable accessories include, for example, labelling strips such as 2009-110, comb bridges such as 859-402 or 859-406, and multi-labelling systems such as 793-503. These elements support structured labelling and wiring in enclosures. Additionally, adapters such as 857-981 are available, enabling connection to flat ribbon cables. The use of these accessories is optional and serves to improve structuring and identification of connections.
Mounting and Installation
The socket is mounted on standard 35-mm rails (DIN rails), commonly used in industrial electrical engineering. Mounting is done by simply inserting it into the rail, with mechanical stability ensured by the housing design. Connections are made via integrated terminals, ensuring a secure and reliable connection. Wiring is carried out according to the electrical requirements of the installation, with the input side connected to the control system (e.g. PLC) and the output side connected to the load.
Advantages in Operation
The use of the 857-724 provides high operational safety due to contactless switching. Service life is significantly higher compared to mechanical relays, as no mechanical wear occurs. Switching speed is higher, which is beneficial for fast control operations. Galvanic isolation between input and output sides increases safety and reduces interference. Integration into existing JUMPFLEX® systems requires no additional effort, simplifying maintenance and expansion of the installation.
| General | |
| Degree of protection | IP20 |
| Input voltage | 24 V DC |
| Output voltage | 0 to 24 V DC |
| Maximum output current | 2 A |
| Colour housing | Grey |
| Module type | JUMPFLEX® socket with solid-state relay |
| Switching technology | Solid-State Relays |
Questions & answers
What is the delivery time of WAGO 857-724 JUMPFLEX socket with Solid-State-Relay input DC 24 V?
The article WAGO 857-724 JUMPFLEX socket with Solid-State-Relay input DC 24 V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of WAGO 857-724 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you WAGO 857-724 JUMPFLEX socket with Solid-State-Relay input DC 24 V always at the best possible price. We can give you a discount of 2% on WAGO 857-724 JUMPFLEX socket with Solid-State-Relay input DC 24 V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of WAGO 857-724 JUMPFLEX socket with Solid-State-Relay input DC 24 V we can offer you a price of 38,34 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
