WAGO 787-722 Primary switch protection Power., ECO Power output voltage 24VDC 5A
|
219,45 EUR |
|||||||||||
|
( 261,15 EUR incl. VAT ) ≈ £188.73 | ≈ $250.17 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 933579 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 787-722 | ||||||||||
| UPC/EAN: | 4045454908188 | ||||||||||
| Weight: | 0.868 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Power Supply Unit from WAGOFurther products in category Power Supply Unit
All products of WAGO
Product information for WAGO 787-722:

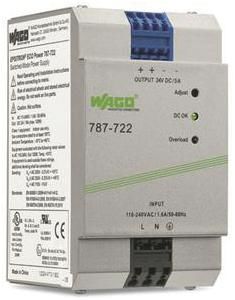

WAGO Primary Switch Mode Power Supplies ECO output voltage DC 24 V 5 A no-load and short-circuit protected adjustable output voltage LED status display for TS 35 CAGE CLAMP® connection
General technical data:
Nominal input voltage Vin rated 230 V AC
input voltage range AC 85 V ... 264 V (with derating 0.8% / V (<110 V))
frequency 47 Hz ... 63 Hz
input current Ie 1.6 A typ. at 230 V AC
inrush current <30 Ap
Mains buffering
output voltage range DC 22 V ... 28 V adjustable
output current Ia 5 A at 24 V DC
Ripple <100 mVpp to 20 MHz
derating -2.67% / K (> 40 ° C)
deviation max. 1 %
Current limitation in the range 1.15 .. 1.4 x Ia
Efficiency typ. 82%
Test voltage pri. - PE 1.5 kV
test voltage Pri. - Sec 3 kV.
Test Voltage sec. - PE 0.5 kV
Protection IP 20
Operating display LED green (24 V DC OK) LED red (overload)
Mounting DIN rail mounting (DIN EN 50022)
Ambient temperature -10 ° C ... +70 ° C
Storage temperature -25 ° C ... +85 ° C
Standards / regulations EN 60950, EN 61000-6-2, EN 61000-6-3
Dimensions Height [mm] 92 mm Width [mm] 75 mm Depth [mm] 136 mm
Type: 787-722 Quantity: 1 ST.
Type: 787-722
General technical data:
Nominal input voltage Vin rated 230 V AC
input voltage range AC 85 V ... 264 V (with derating 0.8% / V (<110 V))
frequency 47 Hz ... 63 Hz
input current Ie 1.6 A typ. at 230 V AC
inrush current <30 Ap
Mains buffering
20 ms at 230 V AC
Nominal output voltage Vout DC 24 Voutput voltage range DC 22 V ... 28 V adjustable
output current Ia 5 A at 24 V DC
Ripple <100 mVpp to 20 MHz
derating -2.67% / K (> 40 ° C)
deviation max. 1 %
Current limitation in the range 1.15 .. 1.4 x Ia
Efficiency typ. 82%
Test voltage pri. - PE 1.5 kV
test voltage Pri. - Sec 3 kV.
Test Voltage sec. - PE 0.5 kV
Protection IP 20
Operating display LED green (24 V DC OK) LED red (overload)
Mounting DIN rail mounting (DIN EN 50022)
Ambient temperature -10 ° C ... +70 ° C
Storage temperature -25 ° C ... +85 ° C
Standards / regulations EN 60950, EN 61000-6-2, EN 61000-6-3
Dimensions Height [mm] 92 mm Width [mm] 75 mm Depth [mm] 136 mm
Type: 787-722 Quantity: 1 ST.
Type: 787-722
