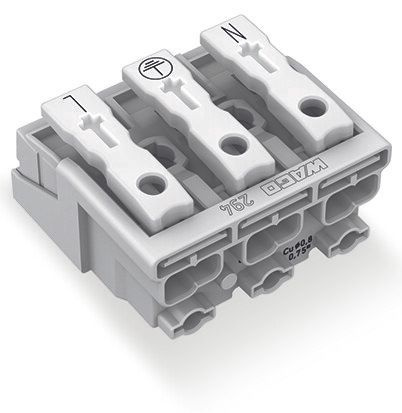

WAGO 294-5013 power connection terminal without PE contact, latching feet N-PE-L, 3-pole, white
|
409,92 EUR 412,34 EUR |
|||||||||||
|
( 487,80 EUR incl. VAT ) ≈ £342.69 | ≈ $452.96 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 500 pieces | |||||||||||
| Lieske Part No.: | 484444 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 294-5013 | ||||||||||
| UPC/EAN: | 4050821020769 | ||||||||||
| Weight: | 4.676 kg | ||||||||||
| Type: | 294-5013 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for WAGO 294-5013:
The WAGO lamp connection terminal type 294-5013 is a 3-pole connection element for the electrical connection between installation systems and lamps. It ensures a safe and reliable connection of electrical conductors in the field of home automation and lighting technology. The terminal is specifically designed for use in electrical installations where a clear separation between the installation side and the lamp side is required. The design enables simple and quick installation without additional tools, with the actuator positioned externally to facilitate the connection process.
Lamp connection terminal
The terminal is designed as a 3-pole component, with the polarity defined as N-PE-L (Neutral, protective conductor, line). On the lamp side, it is designed for single-core conductors, while the installation side is suitable for all common conductor types. This allows for flexible use in various installation configurations. The maximum cross-sectional area is 2.5 mm², covering the use with standard conductors in the low-voltage range. The terminal is designed without a PE contact, which may be required for certain connection configurations.
Functions and equipment in detail
The terminal features an external actuator, which simplifies the connection process and ensures a secure connection. The white color allows for unobtrusive integration into electrical distributors and switch cabinets. The maximum ambient temperature is 85 °C (T85), ensuring suitability for environments with increased thermal load. The terminal is designed for use in electrical installations where a clear separation between the installation side and the lamp side is required.
Technology explained simply
The terminal operates on the principle of spring clamp technology, where the conductor is pressed into a clamp by an actuator. This ensures a stable and durable electrical connection. The use of an external actuator facilitates inserting and securing the conductor, especially in limited space conditions. The terminal is designed for a maximum conductor cross-sectional area of 2.5 mm², covering the use with standard conductors in the low-voltage range.
Compatibility and accessories
The terminal is compatible with various accessories that facilitate connection and installation. These include the release tool series 294 (item 206-294), strain relief for sheathed cables (294-364), strain relief with latching feet for cable diameters 4.5 mm and 12 mm (294-370), strain relief for flat cables (294-384), and strain relief without latching feet (294-375). These accessories support secure fastening and connection of conductors and prevent mechanical stress.
Installation and mounting
Installation is performed by simply inserting the conductor into the terminal and securing it with the external actuator. The terminal is designed for use in electrical distributors and switch cabinets. Installation typically occurs in conjunction with other components of home automation, where the terminal establishes the electrical connection between installation conductors and lamps. The maximum ambient temperature of 85 °C (T85) must be considered during system planning.
Advantages in operation
The terminal provides a secure and reliable electrical connection that remains stable even under load. The simple installation and external actuator facilitate the connection process, especially in limited space conditions. Compatibility with various accessories allows flexible adaptation to different requirements. Use in electrical installations with increased thermal load is ensured by the T85 rating.
The item price shown refers to 500 pieces WAGO 294-5013
Lamp connection terminal
The terminal is designed as a 3-pole component, with the polarity defined as N-PE-L (Neutral, protective conductor, line). On the lamp side, it is designed for single-core conductors, while the installation side is suitable for all common conductor types. This allows for flexible use in various installation configurations. The maximum cross-sectional area is 2.5 mm², covering the use with standard conductors in the low-voltage range. The terminal is designed without a PE contact, which may be required for certain connection configurations.
Functions and equipment in detail
The terminal features an external actuator, which simplifies the connection process and ensures a secure connection. The white color allows for unobtrusive integration into electrical distributors and switch cabinets. The maximum ambient temperature is 85 °C (T85), ensuring suitability for environments with increased thermal load. The terminal is designed for use in electrical installations where a clear separation between the installation side and the lamp side is required.
Technology explained simply
The terminal operates on the principle of spring clamp technology, where the conductor is pressed into a clamp by an actuator. This ensures a stable and durable electrical connection. The use of an external actuator facilitates inserting and securing the conductor, especially in limited space conditions. The terminal is designed for a maximum conductor cross-sectional area of 2.5 mm², covering the use with standard conductors in the low-voltage range.
Compatibility and accessories
The terminal is compatible with various accessories that facilitate connection and installation. These include the release tool series 294 (item 206-294), strain relief for sheathed cables (294-364), strain relief with latching feet for cable diameters 4.5 mm and 12 mm (294-370), strain relief for flat cables (294-384), and strain relief without latching feet (294-375). These accessories support secure fastening and connection of conductors and prevent mechanical stress.
Installation and mounting
Installation is performed by simply inserting the conductor into the terminal and securing it with the external actuator. The terminal is designed for use in electrical distributors and switch cabinets. Installation typically occurs in conjunction with other components of home automation, where the terminal establishes the electrical connection between installation conductors and lamps. The maximum ambient temperature of 85 °C (T85) must be considered during system planning.
Advantages in operation
The terminal provides a secure and reliable electrical connection that remains stable even under load. The simple installation and external actuator facilitate the connection process, especially in limited space conditions. Compatibility with various accessories allows flexible adaptation to different requirements. Use in electrical installations with increased thermal load is ensured by the T85 rating.
The item price shown refers to 500 pieces WAGO 294-5013
| General | |
| Degree of protection | without PE contact |
| Polarity | N-PE-L |
| Number of poles | 3 |
| Maximum conductor cross-section | 2,5 mm² |
| Maximum ambient temperature | 85 °C |
| Colour | White |
| Actuator | External |
| Lamp side | For solid conductors |
| Installation side | for all conductor types |
Questions & answers
What is the delivery time of WAGO 294-5013 power connection terminal without PE contact, latching feet N-PE-L, 3-pole, white?
The article WAGO 294-5013 power connection terminal without PE contact, latching feet N-PE-L, 3-pole, white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of WAGO 294-5013 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you WAGO 294-5013 power connection terminal without PE contact, latching feet N-PE-L, 3-pole, white always at the best possible price. We can give you a discount of 2% on WAGO 294-5013 power connection terminal without PE contact, latching feet N-PE-L, 3-pole, white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of WAGO 294-5013 power connection terminal without PE contact, latching feet N-PE-L, 3-pole, white we can offer you a price of 400,70 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
WAGO 294-5013 power connection terminal without PE contact, latching feet N-PE-L, 3-pole, white is offered by us in a sales unit of 500 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
