Wago Series 2273-3-conductor content_copy

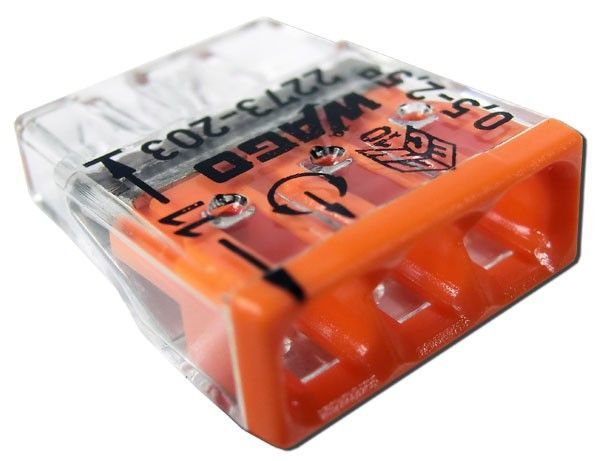

The WAGO connection terminal type 2273-0203 is a COMPACT connection terminal for use in industrial electrical engineering. It enables a secure and reliable connection of up to three conductors with a maximum cross-section of 2.5 mm². The terminal is available in a pack of 100 pieces and serves as a standard solution for connecting electrical conductors in enclosures, control systems, and other installations where compact and robust connection technology is required.

Connection terminal

The terminal is designed as a 3-conductor terminal, meaning it can connect three individual conductors simultaneously. This is particularly advantageous in applications where multiple conductors must be joined at a single point, for example, when connecting phase conductors, neutral conductors, or when connecting sensors and actuators. The maximum cross-section of 2.5 mm² covers typical requirements in industrial electrical installations, including use with copper conductors in low-voltage systems.

Technology explained clearly

The COMPACT technology from WAGO enables a compact design that minimizes space requirements in enclosures. The terminal operates on the principle of a terminal block, where conductors are inserted into an opening and securely clamped by a pressure mechanism. This ensures a stable electrical connection without requiring additional tools for installation. The terminal is designed for use in switchgear and control systems, where high mechanical load capacity and long-term stability are required.

Applications

The terminal is used in industrial electrical engineering, particularly in enclosures, control systems, drive technology, and in the installation of safety and monitoring systems. It is suitable for applications where a quick and secure connection of multiple conductors is required, without the need for additional connection elements such as screw terminals or crimp connectors. The terminal is intended for indoor use, with no specific environmental conditions such as temperature or humidity specified.

Compatibility and accessories

The terminal is compatible with conductors in the cross-section range of 0.2 mm² to 2.5 mm². It can be combined with other products from the WAGO series 2273 to ensure a uniform connection technology within an enclosure.

Mounting and installation

Mounting is performed by simply inserting the conductors into the terminal and then securing them using a pressure mechanism. No tools are required to operate the terminal. Use is typically in conjunction with a control box or enclosure construction.

Advantages in operation

The terminal provides a quick and secure connection without tools, reducing installation time and minimizing error susceptibility. The COMPACT design saves space in the enclosure and allows for dense arrangement of terminals. The connection is mechanically stable and ensures reliable electrical conductivity over a long period, which is important for operational safety in industrial installations. The terminal is designed for use in standardized electrical installations, with no specific environmental requirements such as temperature or humidity mentioned.

General
Number of conductors	3
Maximum conductor cross-section	2,5 mm²
Terminal technology	COMPACT connection terminal
Scope of delivery	100 pieces

---
