Vodia IO - All-in-One Router with PBX

Vodia IO - the all-in-one broadband router Everything you need for on-site communication VoIP has found its way into the router. With Vodia IO, self-employed people and small and medium-sized companies receive a router with DSL, fiber optic connection and Ethernet, WLAN, switch, firewall, a powerful telephone system plus a built-in DECT base station and analogue telephone connections. Combined with the Intel® router platform, this is the ideal solution for small businesses and self-employed people - such as shops, doctor's offices, law offices or restaurants - that need Internet access and telephony but are afraid of the complexity of multiple devices.
With Vodia IO you don't need to run a dedicated device on the LAN for your phone server (see our article here). Not only do you save the purchase costs for multiple devices, but you also don't have to manage different devices, saving time and electricity. Vodia IO handles up to 16 simultaneous phone calls, making it an excellent choice for various types of offices. The built-in broadband router offers the most modern high-speed options with WAN Gigabit, fiber optic, VDSL2+ or ADSL2+. With Vodia IO you have all the options you need to manage your entire company's local network including LAN and WLAN (2.4 and 5 GHz).
The integrated FXS ports and DECT base station allow you to connect multiple voice devices in combination with your standard SIP devices. The analogue connections are suitable for connecting POS devices, door intercom systems or fax machines. A wide range of DECT devices makes office voice mobility robust and easy.

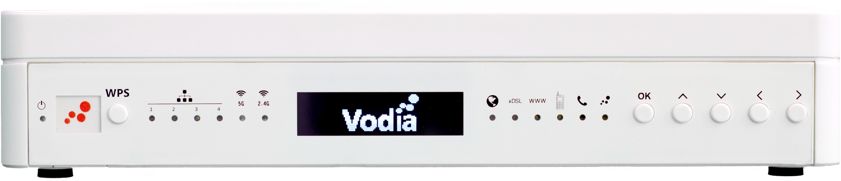

The administration of the router and the telephone system is carried out very easily via the web interface. The built-in OLED display can be used for simple configurations such as: B. WPS pairing can be used.
Only available in the EU Key features Plug and Play:
Integrate VoIP phones within seconds via the web interface xDSL:
Connect to broadband Internet via ADSL or VDSL Fiber:
Use your fiber connection for Gigabit Internet SIP trunks :
Choose from a list of available SIP trunk providers SIP devices, DECT:
Connect your favorite phone from a long list of available devices Cell phones:
Use cell phones as if you were in the office Management via browser:
Manage everything from one Web interface WLAN:
Use the latest WLAN with built-in directional antennas Technical specifications Router specifications Software specifications Broadband router with a variety of supported standards: ADSL2+, VDSL2+, fiber optic, WAN Ethernet Gigabit switch with 4 ports 2 USB 3.0 ports 2 FXS ports for analog devices such as door intercoms , alarm systems or credit card terminals Integrated DECT base station for up to 6 handsets based on CAT-iq 2.0 WiFi 802.11ac with 2 SSIDs Up to 16 simultaneous conversations 128 MB memory Business communication Vodia IO will improve your daily communication. With features aimed at increasing productivity, encouraging collaboration, and enabling better internal and external communication, Vodia IO lets you experience what 21st century communication is all about.
Built to industry standards with an elegant design, Vodia IO offers a solution for all your devices - DECT, FXS and VoIP. And when you use the Vodia IO together with high-quality SIP phones or the Vodia softphone, you benefit from the reliability and interoperability of Vodia as your one-stop shop for business communications.
You can configure and manage the entire system using Vodia IO's user-friendly configuration program, which is easily accessible via a web interface. Set up users, IP phones and SIP trunks quickly and easily and make additions and changes in no time. Thanks to reports, charts, system alerts and notifications, you can enjoy the peace of mind that your Vodia IO and therefore your business communications are running smoothly and securely. Overview of the telephony functions Transferring, parking, recording calls Recording conversations with appropriate announcements Audio conferences with and without invitations Redirection and inclusion of mobile phones Automatic announcements, control via telephone keypad Call center functions including monitoring and trainer mode Receiving FAXes and forwarding as FAX mailbox functions, forwarding as email ... and many other functions Technical overview:
Broadband router with DSL, fiber optic support and WAN access
IEEE 802.11ac and 802.11bgn WiFi
Integrated DECT base station for up to 6 handsets
Ethernet Gigabit Switch with 4 ports
2 USB 3.0 ports
2 FXS ports for analog devices
Pre-installed telephone system for up to 16 simultaneous calls
Router specification:
Router for IPv4 and IPv6
Built-in DHCP server with support for Option 66
Firewall with NAT / DMZ
NTP client and server Network:
Support for various DSL standards VDSL2+ or ADSL2+
Support for Gigabit fiber optic Internet access via plug-in module
Gigabit WAN connector for external modem or external firewall
WiFi support:
Support for 2.4 and 5 GHz WiFi frequency bands
802.11ac WiFi (up to 1,300 Mbits/s), 802.11 bgn WiFi (up to 600 Mbits/s)
Built-in directional antennas
Authentication of users for public Internet access
DECT base station:
DECT base station for up to 6 handsets and 3 simultaneous conversations
Support for DECT CAT-iq 2.0 and DECT GAP
Registration of DECT devices via Vodia IO Display
Software Specification
Vodia PBX for up to 50 extensions and 16 simultaneous calls*
Standard license for 4 simultaneous calls pre-installed
Web-based administration interface can also be used for remote maintenance
Automatic provisioning of VoIP telephones in the LAN
Ability to record conversations depending on License (requires external memory)
Cellular integration:
Cellular devices can be operated in parallel with VoIP phones
Automatic recognition of users when they call the telephone system
Automatic provisioning of popular VoIP apps
Callback for voicemail messages
SMS notifications
SIP trunks:
Large number of predefined SIP trunks
support of UDP, TCP and TLS-based SIP trunks
Support of registration and IP address trunks
Ability to provision SIP trunks via the license
Security:
Encryption of conversations via SIP/TLS, SRTP/SDES and ZRTP
HTTPS server, client and provisioning
Support of ACME (
letsencrypt.org
) Unlocking IP addresses for administrators and users FTP and TFTP server sandbox for provisioning specific LAN devices Anti-port scanner mechanism
Far-End and Near-End NAT Traversal through Session Border Controller
IPv4 and IPv6 Support for SIP, HTTP and other protocols
DNS A, AAAA, SRV, NAPTR and ENUM Support
multiple ports for SIP, HTTP, TFTP, FTP, LDAP and NTP
Quality of Service (QoS) support
Automatic determination of the public IP address
Monitoring and reporting of packet throughput
SNMP server, newrelic client
SMTP (email) client
Hardware specifications:
Dimensions: 265 x 195 x 55 mm
Weight: 930 g
Memory: 64 MB built-in Memory, of which approx.
Power consumption: 42 W max
Ambient temperature: 0-40 °C
Wall mounting: Two angle
Display: 32 x 128 B/W
