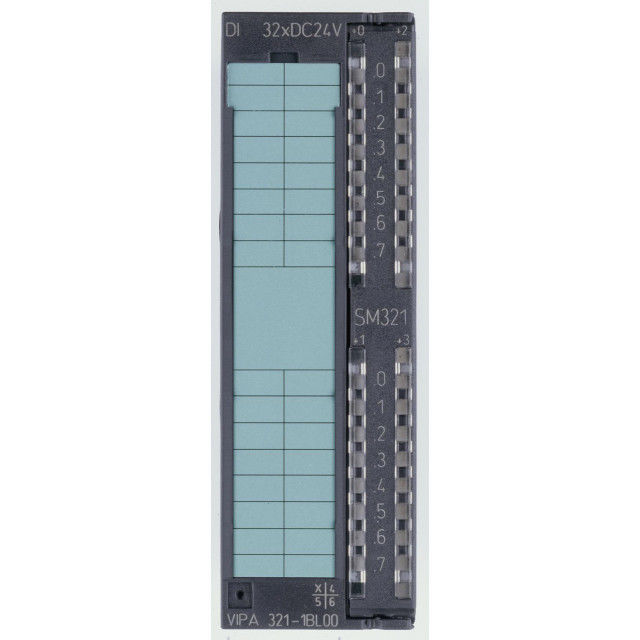

Vipa 321-1BL00 Digital input module SM321,
|
340,70 EUR |
|||||||||||
|
( 405,43 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 859023 | ||||||||||
| Mfg Part No: | 321-1BL00 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Vipa 321-1BL00:
32x DI, two groups
DC 24 V
For 40 pole front connector
SM 321 (321-1BL00)
Technical Data
Order no.: 321-1BL00
Type: SM 321
General Information:
- Note: -
- Features: 32x DI, two groups, DC 24 V, for 40-pin front connector
- SPEED-Bus: no
Current Consumption/Power Loss:
- Current consumption from backplane bus: 35 mA
- Power loss: 6.5 W
Technical Data Digital Inputs:
- Number of inputs: 32
- Cable length, shielded: 1000 m
- Cable length, unshielded: 600 m
- Rated load voltage: -
- Current consumption from load voltage L+ (without load): -
- Rated value: DC 20.4...28.8 V
- Input voltage for signal "0 cm ( 0 inch ): DC 0...5 V
- Input voltage for signal "2,5 cm ( 1 inch ): DC 15...28.8 V
- Input voltage hysteresis: -
- Signal logic input: Sinking Input
- Frequency range: -
- Input resistance: -
- Input current for signal "2,5 cm ( 1 inch ): 7 mA
- Connection of Two-Wire-BEROs possible: yes
- Max. permissible BERO quiescent current: 1.5 mA
- Input delay of 0 to 1: 3 ms
- Input delay of 1 to 0: 3 ms
- Number of simultaneously utilizable inputs in horizontal configuration: 32
- Number of simultaneously utilizable inputs in vertical configuration: 32
- Input characteristic curve: IEC 61131-2, type 1
- Input data size: 4 Byte
Status Information, Alarms, Diagnostics:
- Status display: green LED per channel
- Interrupts: no
- Process alarm: no
- Diagnostic interrupt: no
- Diagnostic functions: no
- Diagnostics information read-out: none
- Supply voltage display: none
- Group error display: none
- Channel error display: none
Isolation:
- Between channels: -
- Between channels of groups up to 16: yes
- Between channels and backplane bus: yes
- Insulation tested with: DC 500 V
Datasizes:
- Input bytes: 4
- Output bytes: 0
- Parameter bytes: 0
- Diagnostic bytes: 0
Housing:
- Material: PPE
- Mounting: Rail System 300
Mechanical Data:
- Dimensions (WxHxD): 40 mm x 125 mm x 120 mm
- Net weight: 240 g
- Weight including accessories: -
- Gross weight: -
Environmental Conditions:
- Operating temperature: 0 °C to 60 °C
- Storage temperature: -25 °C to 70 °C
Certifications:
- UL certification: yes
- KC certification: yes
