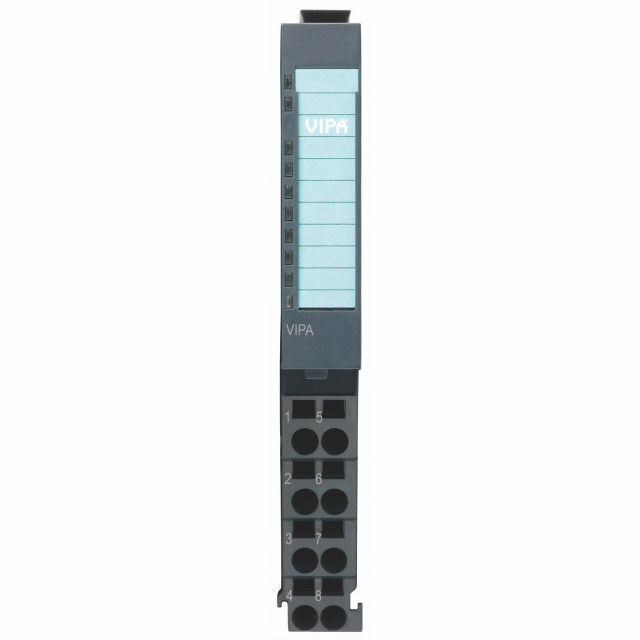

SM 032 - Analog output
2x AO
12 Bit
Current 0(4).20 mA
SM 032 - Analoger Ausgang (032-1BB40)

SM 032 - Analog Output (032-1BB40)

Technical Data:

Order No.:

• 032-1BB40

Type:

• SM 032 - Analog Output

Module ID:

• 0502 25D8

General Information:

• Note: -
• Features: 2x AO, 12 Bit, Current 0(4)…20 mA

Current Consumption/Power Loss:

• Current consumption from backplane bus: 85 mA
• Current consumption from load voltage L+ (without load): 15 mA
• Power loss: 0.8 W

Technical Data Analog Outputs:

• Number of outputs: 2
• Cable length, shielded: 200 m
• Rated load voltage: DC 24 V
• Reverse polarity protection of rated load voltage: yes
• Current consumption from rated load voltage: -
• Voltage output short-circuit protection: -
• Voltage outputs: -
• Min. load resistance (voltage range): -
• Max. capacitive load (current range): -
• Max. inductive load (current range): 10 mH
• Output voltage ranges: -
• Operational limit of voltage ranges: -
• Basic error limit voltage ranges: -
• Destruction limit against external applied voltage: -
• Current outputs: yes
• Max. load resistance (current range): 350 Ohm
• Typical open circuit voltage current output: 12 V
• Output current ranges: 0 mA ... +20 mA, +4 mA ... +20 mA
• Operational limit of current ranges: +/-0.4% ... +/-0.5%
• Basic error limit current ranges: +/-0.2% ... +/-0.3%
• Destruction limit against external applied voltage: max. 12V (30V for 1s)
• Settling time for ohmic load: 0.25 ms
• Settling time for capacitive load: -
• Settling time for inductive load: 1.5 ms
• Resolution in bit: 12
• Conversion time: 2 ms all channels
• Substitute value can be applied: no
• Output data size: 4 Byte

Status Information, Alarms, Diagnostics:

• Status display: yes
• Interrupts: no
• Process alarm: no
• Diagnostic interrupt: no
• Diagnostic functions: yes
• Diagnostics information read-out: possible
• Supply voltage display: green LED
• Group error display: red LED
• Channel error display: red LED per channel

Isolation:

• Between channels: -
• Between channels of groups to: -
• Between channels and backplane bus: yes
• Between channels and power supply: yes
• Max. potential difference between circuits: -
• Max. potential difference between inputs (Ucm): -
• Max. potential difference between Mana and Mintern (Uiso): DC 75 V / AC 50 V
• Max. potential difference between inputs and Mana (Ucm): -
• Max. potential difference between inputs and Mintern (Uiso): -
• Max. potential difference between Mintern and outputs: -
• Insulation tested with: DC 500 V

Datasizes:

• Input bytes: 0
• Output bytes: 4
• Parameter bytes: 8
• Diagnostic bytes: 20

Housing:

• Material: PPE / PPE GF10
• Mounting: Profile rail 35 mm

Mechanical Data:

• Dimensions (WxHxD): 12.9 mm x 109 mm x 76.5 mm
• Net weight: 61 g
• Weight including accessories: 61 g
• Gross weight: 75 g

Environmental Conditions:

• Operating temperature: 0 °C to 60 °C
• Storage temperature: -25 °C to 70 °C

Certifications:

• UL certification: yes
• KC certification: yes

Type: 032-1BB40
