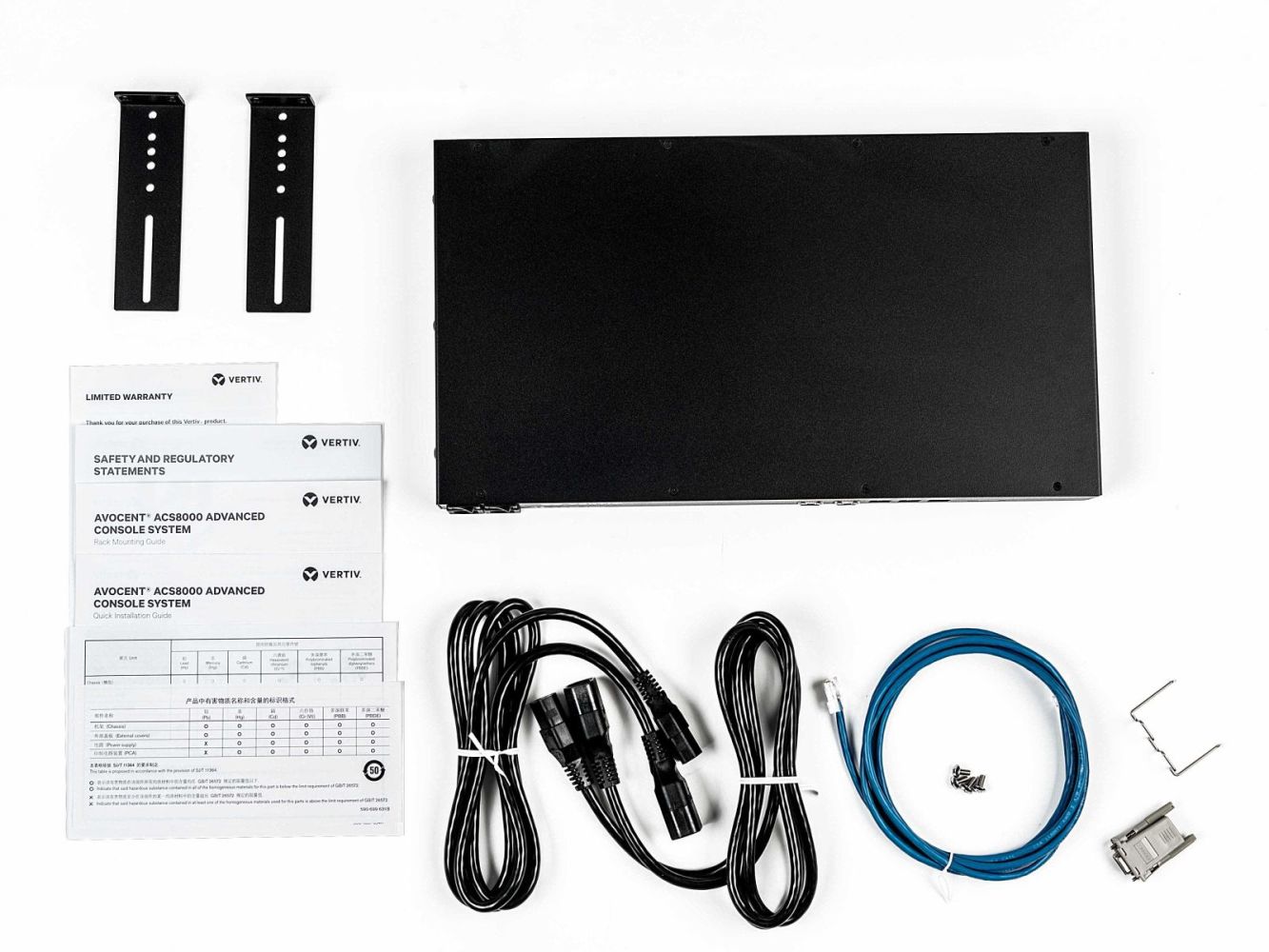

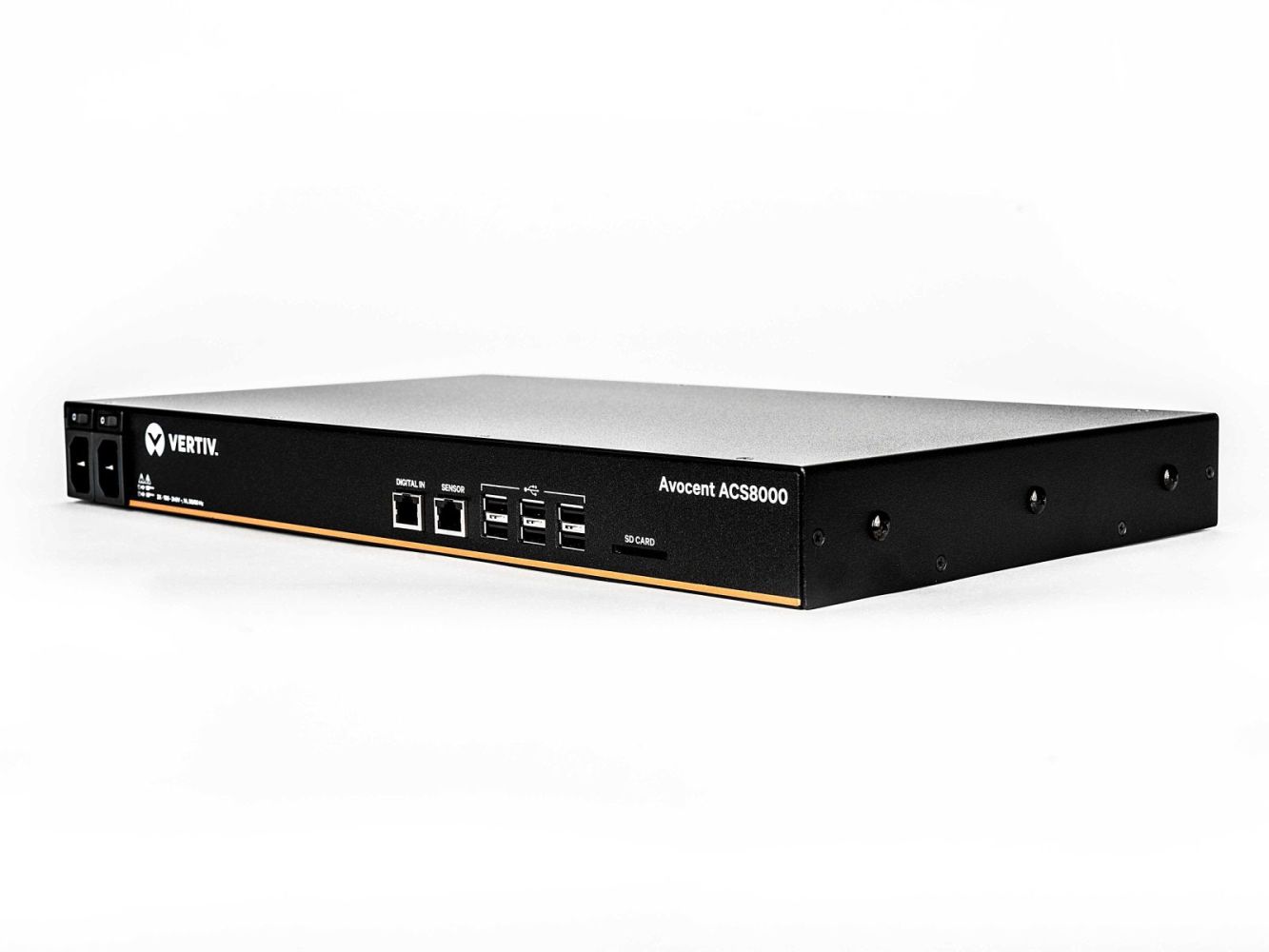

Vertiv ACS8016DAC-404 16-PORT ACS8000 Console System
|
-9% 3.500,46 EUR 3.841,80 EUR |
|
|
( 4.165,55 EUR incl. VAT ) ≈ £2,947.39 | ≈ $3,931.02 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 17. Aug 2025 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1428535 |
| Mfg Part No: | ACS8016DAC-404 |
| UPC/EAN: | 0636430086095 |
| Weight: | 5.36 kg |
| Type: | PERP |
Product information for Vertiv ACS8016DAC-404:
| Certificates | |
| Certification | FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Features | |
| Product colour | Black |
| Rack mounting | |
| Internal modem | |
| Zero Touch Provisioning (ZTP) | |
| Web-based management | |
| Temperature sensor | |
| Event logging | |
| Management features | |
| Management protocols | CLI, HTTP/ HTTPS, SNMP |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 16000 MB |
| RAM capacity | 1024 MB |
| RAM type | DDR3L |
| eMMC capacity | 16 GB |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T, 1000BASE-TX |
| Cable types supported | Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Ports & interfaces | |
| Console port | RJ-45 |
| Serial ports quantity | 16 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP module slots quantity | 2 |
| AC outlet types | C13 coupler |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
| Power consumption (max) | 35 W |
| Input current | 0.1 A |
| Number of power supply units | 2 |
| Processor | |
| Processor family | ARM Cortex-A9 |
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 667 MHz |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| Authentication method | LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP) |
| IP address filtering | |
| One-time password (OTP) | |
| Software | |
| Operating system installed | Embedded LINUX |
| Technical details | |
| Safety | UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Weight & dimensions | |
| Dimensions (WxDxH) | 438.2 x 241.3 x 44.5 mm |
| Weight | 3.4 kg |
Questions & answers
What is the delivery time of Vertiv ACS8016DAC-404 16-PORT ACS8000 Console System?
The article Vertiv ACS8016DAC-404 16-PORT ACS8000 Console System is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Vertiv ACS8016DAC-404 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Vertiv ACS8016DAC-404 16-PORT ACS8000 Console System always at the best possible price. We can give you a discount of 2% on Vertiv ACS8016DAC-404 16-PORT ACS8000 Console System if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
