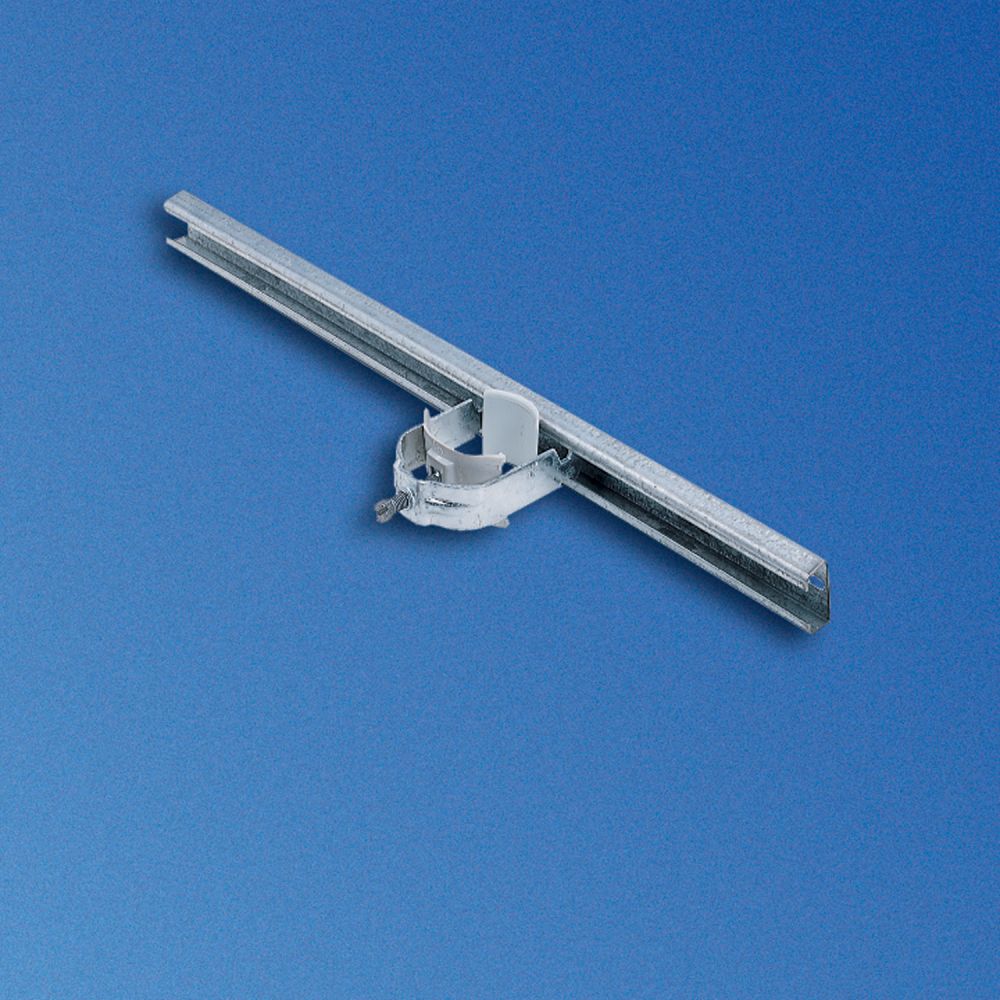

Vertiv 050401579 (Knürr) mounting bracket 40-46 mm, with counter tray, pack of 25

Your rating:
Average rating
product review for Vertiv 050401579 (Knürr) mounting bracket 40-46 mm, with counter tray, pack of 25
( 4.4 / 5 ) 8 ratings
Vertiv 050401579
This image may differ from the desired article.
Vertiv 050401579Vertiv 050401579
281,69 EUR 293,94 EUR
( 335,21 EUR incl. VAT )
≈ £235.77  |  ≈ $309.58
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Vertiv 050401579 (Knürr) mounting bracket 40-46 mm, with counter tray, pack of 25
Datasheet:file_download Download
Lieske Part No.:521054
Mfg Part No: 050401579
Weight:0.123 kg

Product information for Vertiv 050401579:

The cable tilt panel from Vertiv, type 050401579, is an accessory specifically developed for use in 48,3 cm ( 19 inch )- and 25,4 cm ( 10 inch )-enclosures for efficient cable routing and strain relief. It enables secure fastening of cables to C-rails inside the enclosure and allows for structured and orderly cable installation. The panel is grey, which allows it to blend visually into the standard colour scheme of server and network enclosures. It is designed to support cables with a diameter of 40 to 46 mm, making it suitable for a wide range of cable types, particularly thicker network or power cables.

Cable management in the enclosure
The cable tilt panel performs strain relief by absorbing mechanical loads caused by the weight of the cables or pulling forces during cabling. This protects cables from damage and prevents them from being pulled through the enclosure opening. The panel is mounted on C-rails, which are standard in most enclosures, ensuring universal compatibility. The tilt function allows flexible adaptation to the specific cable routing, simplifying cable installation and maintenance within the enclosure.

Technology explained clearly
The panel’s construction is based on a sturdy metal frame providing the necessary strength to withstand cable pulling forces. The specified diameter range of 40 to 46 mm defines the maximum cable diameter that can be safely routed. The use of C-rails as mounting elements is a common practice in server and network environments, as these rails are standard in most enclosures and allow secure mounting. The panel is thus part of a modular enclosure accessory system that can be adapted to specific installation requirements.

Compatibility and accessories
The cable tilt panel is specifically developed for enclosures of the Vertiv Knürr MIR2 system, but due to the use of C-rails, it is also usable in other enclosure types with corresponding mounting options. It is part of the cable management system, which may also include other elements such as cable ties, cable conduits, or cable ducts. Using it in combination with other cable management components enables structured and clear cable routing within the enclosure.

Mounting and installation
Mounting is done by securing the panel to the C-rails inside the enclosure. The panel is attached to the rails, with the exact mounting method determined by the panel’s design and the rails. Installation requires no additional tools or components, as the panel is directly mounted onto the existing rails. Cables are routed through the panel, with the tilt function allowing adaptation to the specific routing configuration.

Advantages in operation
Using the cable tilt panel improves order within the enclosure, reduces the risk of cable damage due to pulling forces, and simplifies cable maintenance and inspection. The clear structuring of cable routing supports efficiency during installation and future network modifications. The robust construction ensures long service life and reliable performance in daily operation.

Features
TypeCable dump panel
Product colourGrey


Product data sheet
Datasheet for Vertiv 050401579

Questions & answers

What is the delivery time of Vertiv 050401579 (Knürr) mounting bracket 40-46 mm, with counter tray, pack of 25?

The article Vertiv 050401579 (Knürr) mounting bracket 40-46 mm, with counter tray, pack of 25 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Vertiv 050401579 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Vertiv 050401579 (Knürr) mounting bracket 40-46 mm, with counter tray, pack of 25 always at the best possible price. We can give you a discount of 2% on Vertiv 050401579 (Knürr) mounting bracket 40-46 mm, with counter tray, pack of 25 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
