Vertiv 050401001 (Knürr) accessory cable routing plate, 1 U, flexible, light grey content_copy

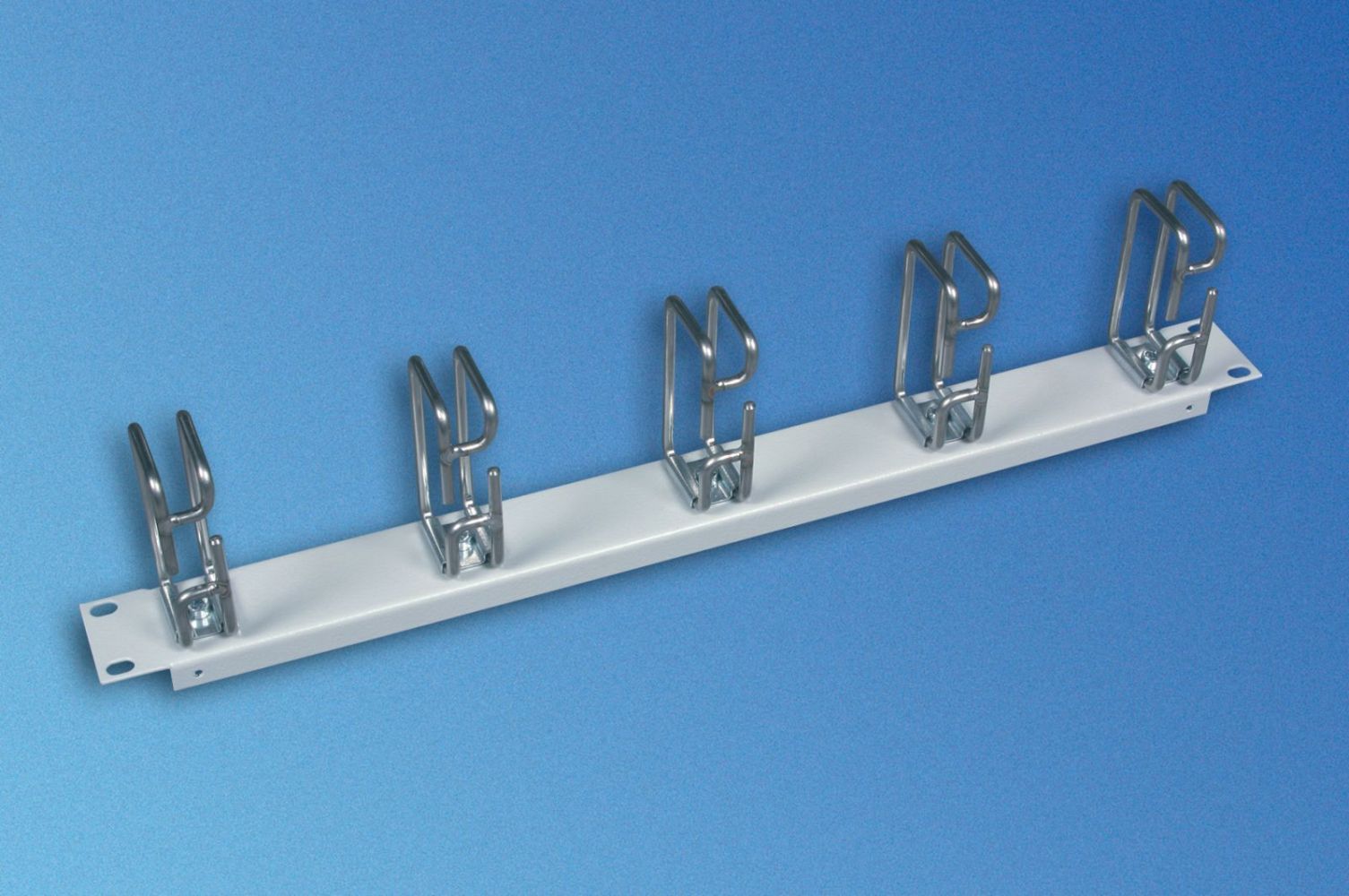

The Vertiv cable management panel, manufacturer's number 050401001, is an accessory for 19-inch racks, specifically designed for the organized and secure routing of copper cables and optical fibers. The product enables structured cable management within server and network racks, allowing for clear cable routing to avoid entanglement, tension, and access difficulties. The panel is finished in RAL 7035 light gray and made from robust steel sheet with a thickness of 1.5 mm, powder-coated to resist corrosion and mechanical stress. Cable routing is facilitated by five vertical cable guides made of galvanized round steel with a diameter of 5 mm, integrated into the panel.

Cable management panel

The panel is designed as a 1 U element, corresponding to a height of 82 mm, and offers external cable routing dimensions of 82 mm (height) × 43 mm (width). These dimensions are designed for integration into standard 19-inch racks, providing sufficient clearance for routing cables of various thicknesses and types. The vertical guides enable vertical cable routing, achieving clear separation between different cable types or directions. The powder-coated surface ensures uniform light gray coloring, visually matching typical data centers and server rooms.

Functions and equipment in detail

The cable management panel is designed to optimize cable routing in IT infrastructures. The five vertical guides made of galvanized round steel provide a stable anchor point for cables, reducing strain on connections. The front plate made of 1.5 mm thick steel sheet ensures high mechanical stability and prevents deformation under load. The powder-coated surface offers additional protection against corrosion and is suitable for indoor use where high durability and visual elegance are required.

Technology explained simply

The panel is mounted in a 19-inch rack, with the cable guides arranged at a height of 1 U (82 mm). The vertical guides serve as routing elements, along which cables can be routed to create a clear structure. The use of galvanized round steel ensures high corrosion resistance, especially in environments with increased humidity. The powder-coated steel sheet front plate is resistant to mechanical impacts and provides a uniform surface that integrates well into existing rack systems.

Compatibility and accessories

The cable management panel is designed for use in standard 19-inch racks and adapts to common mounting spacings. It is specifically designed for routing copper cables and optical fibers, with cable routing dimensions (82 mm × 43 mm) supporting a wide range of cable diameters. The panel can be used in combination with other Vertiv rack accessories such as cable ties, covers, or additional management panels to create a complete cable routing system.

Installation and mounting

Mounting is performed in a 19-inch rack, where the panel is secured at designated mounting points. The vertical guides are already integrated and require no additional installation. Installation can be done without additional tools, provided the rack structure includes standard mounting points for 1 U elements. The panel is designed for easy integration into existing rack systems.

Operational benefits

Structured cable routing reduces the risk of cable entanglement and simplifies maintenance and expansion of IT infrastructure. The vertical guides ensure clear cable separation, improving identification and accessibility of individual connections. The robust construction from steel sheet and galvanized round steel ensures long service life and high reliability in daily operation. The light gray color (RAL 7035) visually matches typical server and network environments without causing visual disturbances.

Features
Type	Cable management panel
Product colour	Grey

---
